Fast Fixing Square Metal Speed Clips With Different Size For
Insulaton Pins
Quick details of the Square Metal Speed Clips
The Square Metal Speed Clips are Stamped by the metal plate with
different material , such as mild steel , stainless steel ,
aluminum material .
We provide the speed clips with different mateiral and size for
fixing the insulation pins, such as the perforated base insulation
pins, self stick insulation pins , Bi-metal weld pins , CD weld
pins , lacing anchor, etc .
- Name : Speed clips , self locking washers, Speed fix clips .
- Material: Stainless steel in common . also could be mild steel or
aluminum alloy.
- Edges type: Beveled Edges in common , also could be flated edges
- Thickness of the material: 0.4mm,0.5mm in common , also could be
customized
- Shape : square shape
- Size : 30mm,32mm,40mm, 50mm,63.5mm in common
- Hole size :0.105'', due to the fixing pins diameter.
- Features: Enough hard; firm locking; no burr and smooth
- Surface treatment: Polished finished for stainless steel material
washer, zinc coated for mild steel material, UV coated for
aluminum.

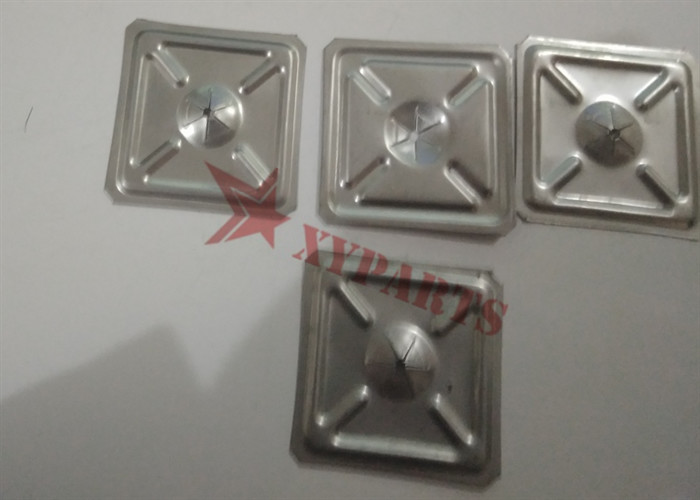

Ref photos of the Square Metal Speed Clips

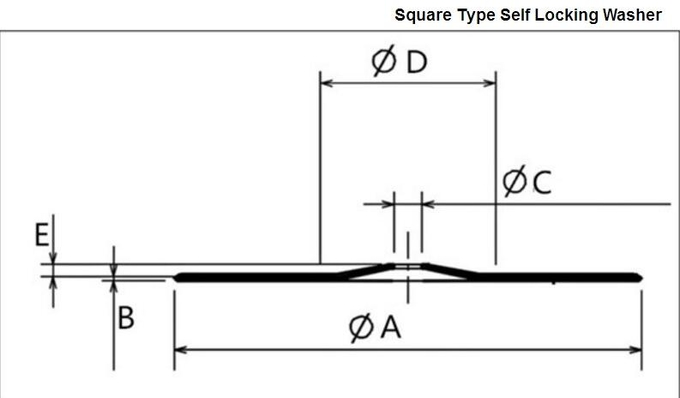

Data sheet of the Square Metal Speed Clips
| Data sheet of the Square Metal Speed Clips |
| Material | Mild steel , Stainless steel , Aluminum alloy |
| Shape | Square |
| Thickness (B) | 0.4mm,0.5mm,0.6mm or customized thickness |
| Common size | 25mm, 30mm,32mm,40mm,50mm,63.5mm, etc |
| Center hole dia(C) | 2.0mm,2.5mm ,2.7mm, 3.0mm , or customized hole dia |
| Height(E) | 0.8mm-3.0mm |
| Application | The washers is wildely used for fixing perforated base insulation
pins . self stick pins ,CD weld pins , Bimetallic weld pins, etc |
| NOTE | The size also could be customized for large order . |
The Square Metal Speed Clips could be used to fix:
- Perforated insulation-hangers
- Metal lacing hangers
- Self adhesive insulation nails
- Types of weld pins
- Other type of insulation nails ,
