Decoration Colors Aluminum Alloy Coil Wire Mesh Drapery As Metal
Room Ceilings
Quick details of Aluminum Alloy Coil Wire Mesh Drapery
- Material: aluminum alloy, stainless steel 304
- stainless steel 316, brass, copper, phosphor bronze ,
- low carbon steel etc
- Wire diameter: 1–2 mm
- 80% customer choose 1.0mm,
- 13% customer choose 0.8mm,
- 5% customer choose 1.2mm.
- Aperture size: 4-10mm
- Open area: 40– 85%
- Weight: 4.2–6 kg/m2.
- (depending on material and size chosen)
- Coil length & mesh panelwidth:
- customized.(up to 11m*100m)
- Surface treatment: anodic oxidation and spray paint
Specification details of Aluminum Alloy Coil Wire Mesh Drapery
Material | Wire diameter (mm) | Aperture(mm) | Theoretical Weight (kg/m2) | Surface Treatment |
AISI 304/316 | 1 | 5 | 3.3 | Natural polished |
1 | 8.4 | 3.5 |
1.2 | 6.8 | 5.8 |
Al-Mg Alloy | 1.2 | 4 | 1.9 | Paint-spray Anodizing |
1.2 | 5 | 1.5 |
1.2 | 6 | 1.25 |
1.2 | 7 | 1.13 |
1.2 | 8 | 1.2 |
1.2 | 9 | 0.85 |
Aluminum | 1 | 5.5 | 1.5 |
1.2 | 6.8 | 2.5 |
1.2 | 8.5 | 2 |
Carbon Steel | 0.9 | 6.3 | 4 |
1 | 6.8 | 5.5 |
1.2 | 8.5 | 6 |
Details of Aluminum Alloy Coil Wire Mesh Drapery
Installation frame dersign for aluminum alloy coil wire mesh
drapery
How to Measure:
Including all replacement screen sets. coil mesh draprty height does not include the height of the hanging
rings. The included hanging rings add 1/2" to the height of the
coil wire mesh drapery. Replacing an existing screen: Measure the height and width of the
existing screen (not including the hanger rings) and order the same
height screen. Adding a screen to an existing rod: Measure the height of your
fireplace opening and subtract 1-inch.
Purchasing coil wire mesh drapery with an adjustable rod & valance
kit: Measure the height of your fireplace opening and subtract
2-inches.
Applications of aluminum alloy coil wire mesh drapery
aluminum coil wire mesh drapery Drapery with versatility, variety
of color, durability and flexibility, metal coil drapery provides a
new decoration style for various functions and practical areas.Such
as:
1)Curtain: shower curtain, window curtain, door curtain, fireplace
mesh curtain,etc.
2)Space divider: for home, office, restaurant, hotel, supermarket,
etc.

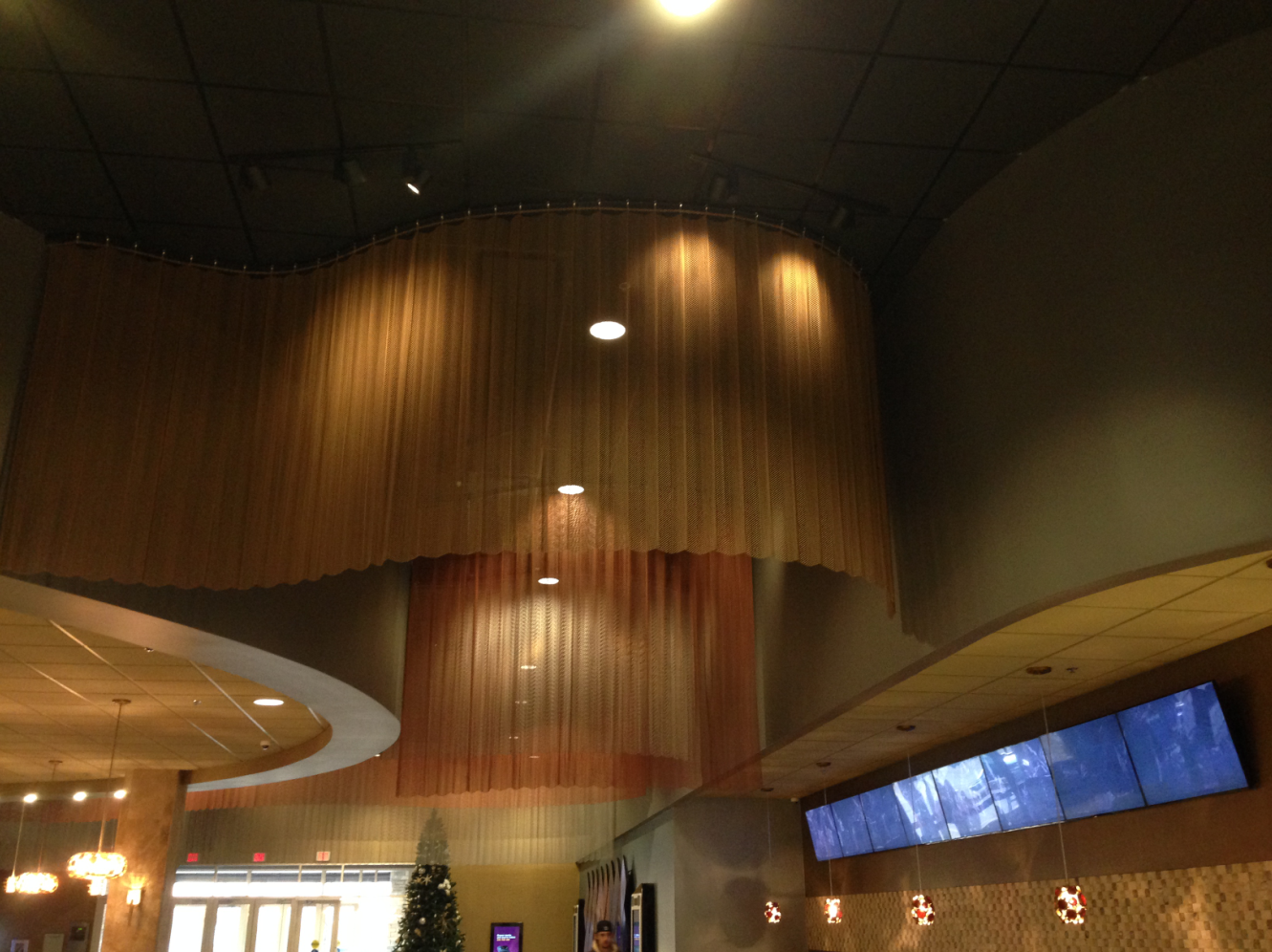

3)For decoration: light partitioning, exhibition hallsceilings,
wall covering, display, etc.
4)For protection: cladding, facade, enclosures, shades, etc.
