Mini Cup Head CD Weld HVAC Air Duct Insulation Pins

Ask Lasest Price
Brand Name :	HUIHAOCUSTOM
Model Number :	25-CD-PINS
Certification :	ISO9001-2015
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	650000 pcs per month
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

Mini Cup Head CD Weld HVAC Air Duct Insulation Pins

Mini Cup Head CD Weld Hvac Air-Duct Insulation Pins With Factory Prices

Quick details of the air-duct insulation pins

Material:	Carbon steel, stainless steel, copper
Keywords:	12 ga metal insulation pin
Packaging Details	Packing can be customized as per equirements
Pin length:	1-1/2",2-1/2",3-1/2",4-1/2",5-1/2"
Production workmanship:	Automated production
Report:	Material test report and dimension measurement report
Supply Ability:	100000 Piece/Pieces per Month
Surface treatment:	zinc coated/ copper plated
Washer Dia.:	25mm/30mm for your choose
Type:	cupped head CD weld pins

Destripations of air-duct insulation pins

Mini-Cup Head Capacitor Discharge Weld Pins are manufactured to be a single robust fastener. The precision attachment of cap and shank allows for better contact when welding. The optional protected adhesive on the underside of the cap acts as a superior insulator over traditional paper washers.

Specifications details of air-duct insulation pins

cup base size	pin diameter	pin length	material	ODM/OEM
25mm	3mm, 3.4mm	10mm, 15mm, 20mm, 25mm, 38mm	MS, SS, CO	Support
30mm	3mm, 3.4mm	10mm, 15mm, 20mm, 25mm, 38mm	MS. SS,CO	support

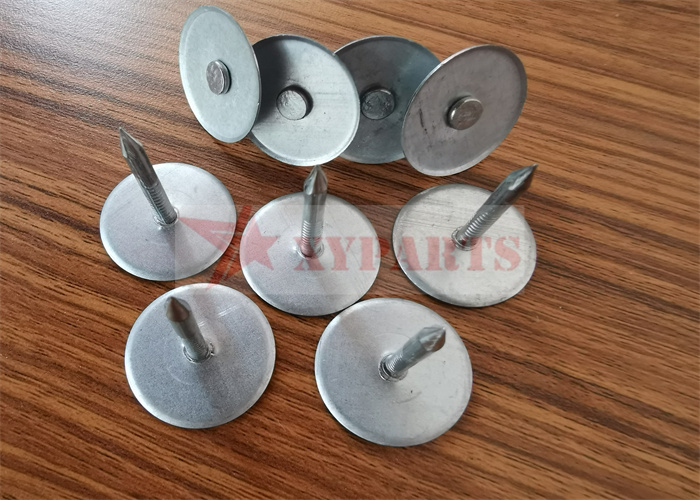

Images of air-duct insulation pins

Applications introduction of the Air-Duct Insulation Pins

recommended for	pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1"insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2"insulation(1-1/2"-2" ib density)	37.95mm
2"insulation(3ib densities)	48.77mm
3"insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm
