54 Mm X 38 Mm Stamped High Grade Zinc Plating Steel Rock Wool
Impaling Clips
specification details of rock wool impaling clips
common specification of rock wool impaling clips |
material | thickness | size | height |
stainless steel | 1mm | 50mmx38mm | 15mm / 20 mm |
mild steel | 1mm | 50mmx38mm | 15mm / 20 mm |
galvanized steel | 1mm | 50mmx38mm | 15mm / 20mm |
what standard material do you choose for rock wool impaling clips?
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),
C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063

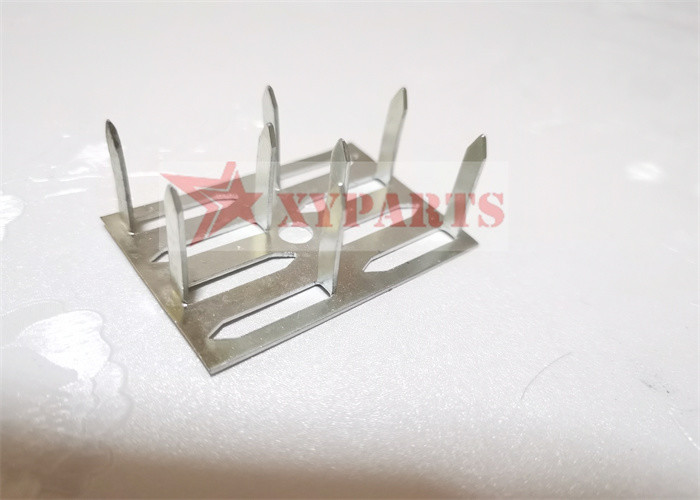

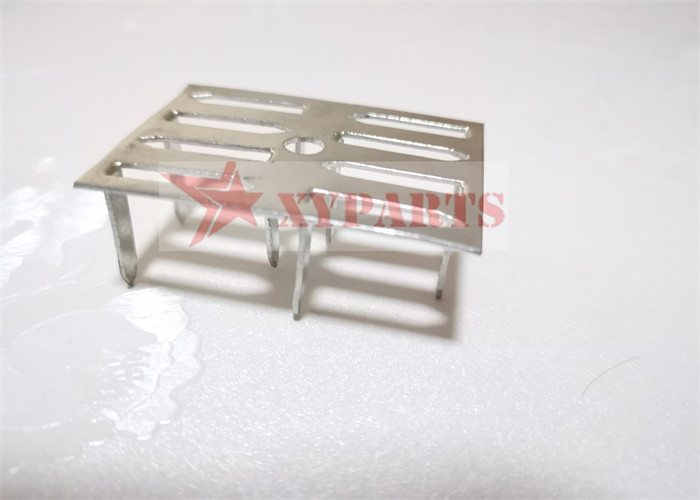

Image details of the rock wool impaling clips
Applications of the rock wool impaling clips
rock wool impaling clips are used to easily attach Acoustic Panels
(703 Board) to walls.
Each clip has 8 spikes that stick into the fiberglass panel backing
and hold the panel in place.
For panel applications requiring an air gap, wood spacer blocks can
be installed between the impaling clips and the drywall to keep the
panel spaced off of the wall.
The impaling clips are installed on the wall by either 1 drywall
screw (not included) or attached with adhesive (Multi-Seal 180).
4-6 impaling clips are recommended per standard 2' x 4' panel
making sure one impaling clip is placed in each corner.
XIANGYI METAL PRODUCT CO.,LTD- INTRODUCTION
FAQ
How is Supplier's Responsiveness to Customer Service Inquiries?
timely and accurate,and The sales department and production
department perfect record work at the same time
how to ensure the quality?
our factory meet ISO9001-2015 system certification, and we will
supply offical material test report and product test report by
SGS/BV
How to ensure the delivery in time?
firstly we have stock for common sizes.
second, we have mould making-term,help sepcial order to save time
for making mould.
third, we own Advanced production equipment and experienced
workers.
four, Long-term cooperation with courier companies and sea and air
freight forwarders
do you accept small order?
yes, we accept small order, for insulation pins, retail order is
avable MOQ3000pcs. if need open new mould , MOQ is 20000pcs.
for weave wire mesh, MOQ30square meters
is it avable for free sample?
common size is free. it is no free for specifical size
can you supply design service?
yes, we can supply CAD drawing
can you supply installation guide?
yes, installation guide is avable for every order.
