35mm Perforated Base Insulation Metal Plugs For Fixing Building Boards

Ask Lasest Price
Brand Name :	HUIHAOCUSTOM
Model Number :	XY-GS-M8
Certification :	ISO9001-2015
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	400000SETS PER 28 DAYS
Delivery Time :	7 WORK DAYS

Add to Cart

Product Details
Company Profile

35mm Perforated Base Insulation Metal Plugs For Fixing Building Boards

Insulation metal plugs with 35mm perforated base for fixing building boards

Quick details of the insulation metal plugs

Material :galvanized steel or stainless steel
Material thickness: 0.7mm
Base:35mm diameter washer with round holes.
Pin diameter:8.0mm
Pin/plug length:50mm/60mm/90mm/110mm/140mm/170mm/200mm/230mm , etc
Packing:250pcs/box, then put on pallet, also could be packed as request.

Size	Pin dia(D)	Pin length (L)	Base size (A)	Material thickness(T)	Packing
M8*50mm	8mm	50mm	35mm	0.7mm	250pcs /box
M8*60mm	8mm	60mm	35mm	0.7mm	250pcs /box
M8*90mm	8mm	90mm	35mm	0.7mm	250pcs /box
M8*110mm	8mm	110mm	35mm	0.7mm	250pcs /box
M8*140mm	8mm	140mm	35mm	0.7mm	250pcs /box
M8*170mm	8mm	170mm	35mm	0.7mm	250pcs /box
M8*200mm	8mm	200mm	35mm	0.7mm	250pcs /box
M8*230mm	8mm	230mm	35mm	0.7mm	250pcs /box

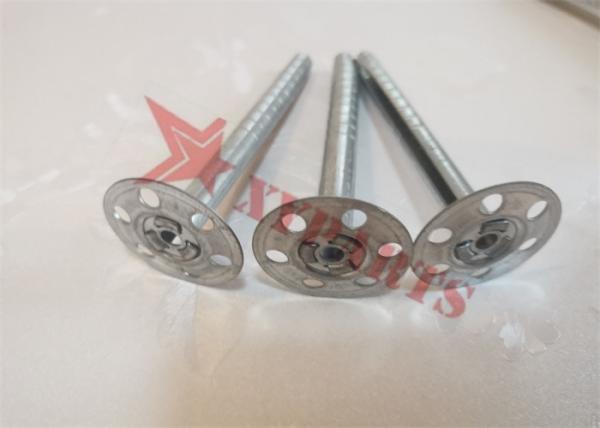

Detail photos of the insulation metal plugs

35mm Perforated Base Insulation Metal Plugs For Fixing Building Boards

Application of the insulation metal plugs

Suitable for:

·Concrete

·Natural stone with dense structure

·Solid brick

·Solid sand-lime brick

·Solid block made from lightweight concrete

·Aerated concrete

·Vertically perforated brick

·Perforated sand-lime brick

For fixing for:

·Soft and pressure-resistant insulating material, e.g.

·Glass wool

·Rock wool

·Polystyrene

·PU panels

·Foam glass

·Lighting building boards made of wood wool

·Coir matting

35mm Perforated Base Insulation Metal Plugs For Fixing Building Boards

70mm insulation fasteners for 20-40mm insulation panels
90mm insulation fasteners for 40-60mm insulation boards
110mm insulation anchors for 60-80mm insulation slabs
130mm insulation anchors for 80-100mm insulation slabs
150mm insulation fixings for 100-120mm insulation slabs
180mm insulation fixings for 120-150mm insulation boards

Related tools

High Quality Insulation Pin Plastic Dowel for outer wall

XIANGYI METAL INTRODUCTION

FAQ

Q1. How about the Delivery time?
A. About 20-35 days.
Q2. What kind of payments does jenor support?
A. T/T,L/C ,D/Pare accepted or other methods negotiable.
Q3. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
