Material

Material B

ø d1

Total length

Packing methods

Aluminum

Carbon steel or Stainless steel

6mm

40mm

300pcs in one plastic bag,

then put the bags into cartons,

and then packed with

pallets or wooden case

Aluminum

Carbon steel or Stainless steel

6mm

50mm

Aluminum

Carbon steel or Stainless steel

6mm

55mm

Aluminum

Carbon steel or Stainless steel

6mm

75mm

Aluminum

Carbon steel or Stainless steel

6mm

90mm

Aluminum

Carbon steel or Stainless steel

6mm

114mm

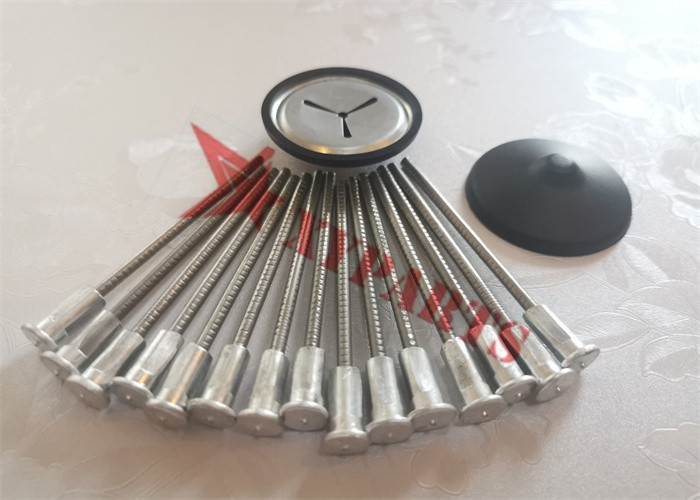

features of the Bimetallic Weld Pins

BETTER PLATING

weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.

REDUCED DOWN TIME

Consistent point quality reduces frequency of machine adjustments.

STRONGER WELDS

Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

CORROSION RESISTANCE

Plating exceeds current SMACNA standards for corrosion resistance.

TEMPERATURE RANGE

CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.

VIBRATIONS

CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.
