Stainless Steel Wire Mesh Curtain Partition Walls
wire mesh curtain is a material that stirs the imagination of
architects and designers. wire mesh curtain provides color and
texture,reacts beautifully to light.and is flexible and formable.
Simultaneously open and closed. panels of mesh perform myriad
functions in virtually any application and are available in
unlimited lengths up to 40 feet in height.
wire mesh curtain looks and performs like traditional woven metal
wire mesh but is far more affordable. This affordability lets
architects and designers flex their creativity, creating signature
interiors and exteriors, and turning architectural projects with
even very modest budgets into something special.
Technical data of wire mesh curtain
Products | wire mesh curtain |
Materials | Aluminimum Alloy/Stainless Steel/Carbon Steel |
Diameter | 1-1.2mm |
Aperture | 4-10 mm |
Weight | 1.7 kg/m2 - 6 kg/m2 (depending on shape and material chosen). |
Open Area | 40% - 85% |
Surface treatment | Baking varnish, anodic oxidation, acid washing, pvd, antique |
Color | Original metallic color or spray into other colors.
Silver, brass-yellow, ultra-black, Chinese red, purple, bronze,
pearl gray, etc |
wire mesh curtain is a new type of metal curtain for modern
interior decoration. It is also called metal mesh curtain or coil mesh curtains. Wire mesh curtain not only has the flexibility and
foldability of traditional cloth curtains but also has the gloss of
metal wires. Compared with the traditional curtain, metal coil
drapery has excellent fireproof property, ventilation, and light
transmission, thus it has a longer service life.
Images of wire mesh curtain
Fixing parts for wire mesh curtain installation
Installation frame dersign for wire mesh curtain
We can complete selection of accessories. Customer can choose
straight or curvy curtain rail system on their request. It is easy
to install the rail system. First, the rail should be fixed into
the wall or the place the drapery will used for, then you can slide
metal pulleys into the rail. At last stopping the rail ends up.
Installation process of wire mesh curtain
step 1 : pulley wheel slip into the track
step 2 : fix the track head in two sides
step 3 : confirm the gap of the metal mesh curtain folds
step 4 : connect and fix the track, metal chain and mesh curtain by
screws
step 5 : install the connection for track and wall
step 6 : installation renderings

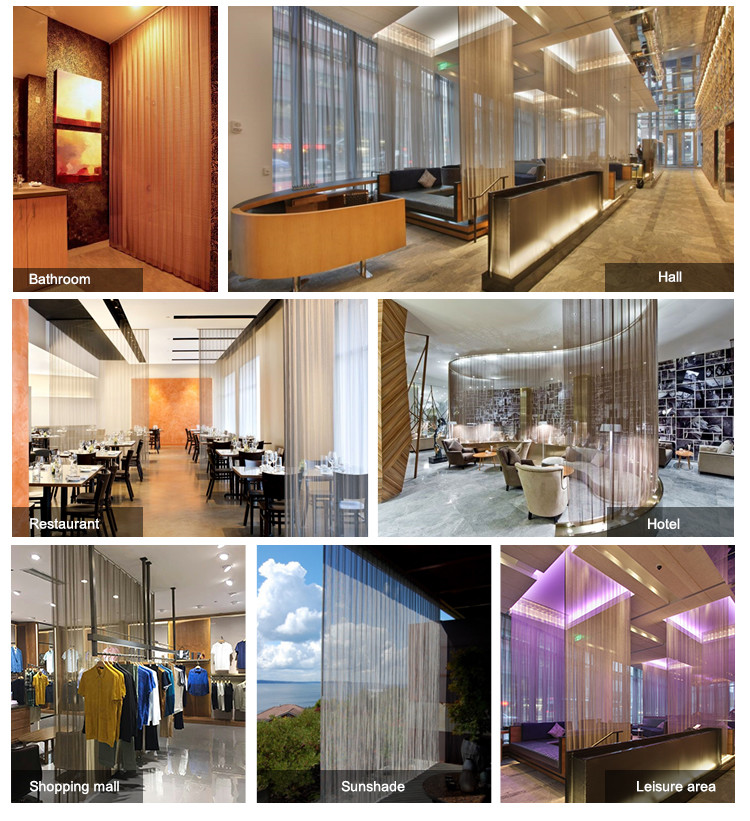

Applications of wire mesh curtain
| projects of wire mesh curtain | usages of wire mesh curtain |
 | 1. Curtain-shower, door, window, house;
2. Space divider-for home , office ,hotel, supermarket, etc;
3. For decoration- ceiling lamp, wall covering, display, light
partitioning, trade fair exhibition;
4. For protection-facade, enclosures, cladding, sun shades;
5. Screens & isolation - for dining hall, etc.
|
FAQ -- XIANGYI METAL PRODUCT COMPANY
1. How to make a inquiry of decorative mesh curtains?
You need to provide material, aperture diameter, wire diameter,
coil length & mesh panel width and the quantity to ask an offer,
you can also indicate if you have any special requirement. We'll
provide formal quotatiom list after your inquiry received.
2. Could you provide decorative mesh curtains sample ? How long
does the sample need to be prepared?
Yes, we can provide sample.Sample production time is 5~7 days.
3. Can you tell me how to install the decorative mesh curtains?
Yes, we can provide installation instructions and videos.
4. Can you provide customized services?
Yes,we can. We can produce according to your needs, and can
recommend you a cost-effective product for you.
5. What is your MOQ ?
There is no minimum order quantity, we will do the best to support
you.
