Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Ask Lasest Price
Brand Name :	XIANGYI
Model Number :	cupped head weld pins
Certification :	ISO9001-2015
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	200.000pcs per week
Delivery Time :	10 day

Add to Cart

Product Details
Company Profile

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

HVAC system insulation accessories cupped head weld pins product for duct liner

Cupped head weld pins product introuduce:

1. Certification: ISO9001
2. Material: Low Carbon Steel, material specifications or certification available.
3. Finish: Mild Steel pins are galvanized/coated, washer is galvanized.
4. Annealing: All steel pins are fully annealed unless otherwise specified.
5. Paper Insulating Washers:Available for welding through foil faced insulation.Paper insulating washers can be ordered separately or factory installed.
6. Compatibity: All pins are compatible and recommended for use with all brands of CD stud welding equipment

Cupped head weld pins product specification:

common size of duct liner Cupped Head Weld Pins
Cupped Head Weld Pins diameter	Base size	Length	Material	Finished
2.7mm	25mm, 30mm	15-250mm	Mild steel ,stainless steel copper	Zinc/copper plating
3mm	25mm, 30mm	15-250mm
3.4mm	25mm, 30mm	15-250mm

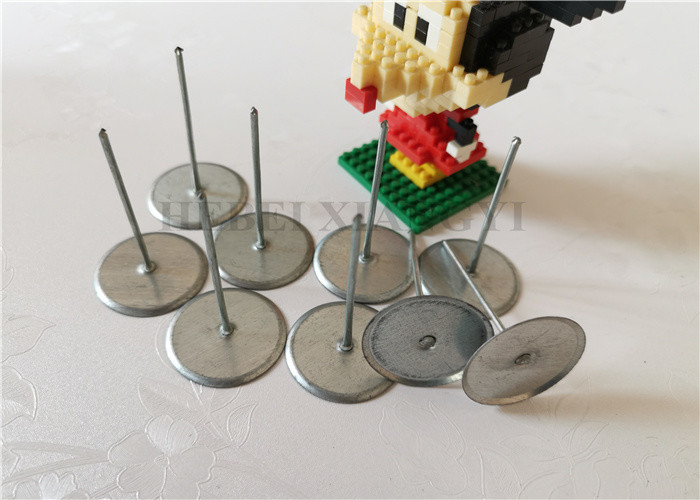

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Feature of cupped head weld pins :

BETTER PLATING	weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME	Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS	Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE	Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE	Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS	Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

Cupped head weld pins installation:

Cupped head weld pins advantage:

Cupped Head:
Reduces jams and machinery down time while preserving the insulation.
Contact Head:
Oversized head increases the welding surface, resulting in a reduction in misfires and superior strength.
Point:
Forged diamond point for strength and weld consistency.

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Xiangyi company introuduction :

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Types Of Insulation Weld Pins
1) Ship use insulation pins ,insulation nails,insulation washer
2) Sound insulation cotton special welding nail
3) Plate welding nail
4) Screw Stud welding nail
5) We can also provide insulation pins use welding machine and screw stud welding machine
6) Shear studs
7) Aluminum insulation pins,stainless steel insulation pins,self-adhesive insulation pins
