Cuphead CD Insulation Weld Pins Welder

cuphead CD insulation weld pins also named CD weld pin or cup head pin or cupped head weld pin.

Quick details of the Cuphead CD insulation weld pins

CupHead CD insulation weld Pins simplify the permanent installation of duct liner or similar insulation to ducting and other HVAC sheet metals and housings. They can be applied quickly and easily using standard inductive CD stud welding equipment or resistance welding equipment.

CupHead CD insulation weld Pins are available in several different styles for portable inductive CD stud welders, which allow on-site insulating of ducting and other HVAC enclosures. There is also a style available for automatic resistance welders and pinspotters for the prefabrication of insulated ducting, panels or housings

Beveled Edge Cap		Prevents tearing of duct liner
Faster Welds		Forged diamond point design creates more electrical resistance for faster welds.
Better Plating		Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
Reduced Down Time		Consistent point quality reduces frequency of machine adjustments.
Stronger Welds		Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with Standard Equipment		Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders.

Specification of the cuphead CD insulation weld pins

Photo	CD CUPHEAD CD INSULATION WELD PINS
	Part No.	pin diameter	round base size	pin Length
	HH-12	2.7mm	1-1/2"	Stnd up to 6"
	HH-10	3.4mm	1-1/2"	Special Order
	ZG-14	2.0mm	1-3/16"	Up to 2-1/2"
	ZG-12	2.7mm	1-3/16"	Stnd up to 6"

For US, Canada, the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8" .

For EU countries, the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).

the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

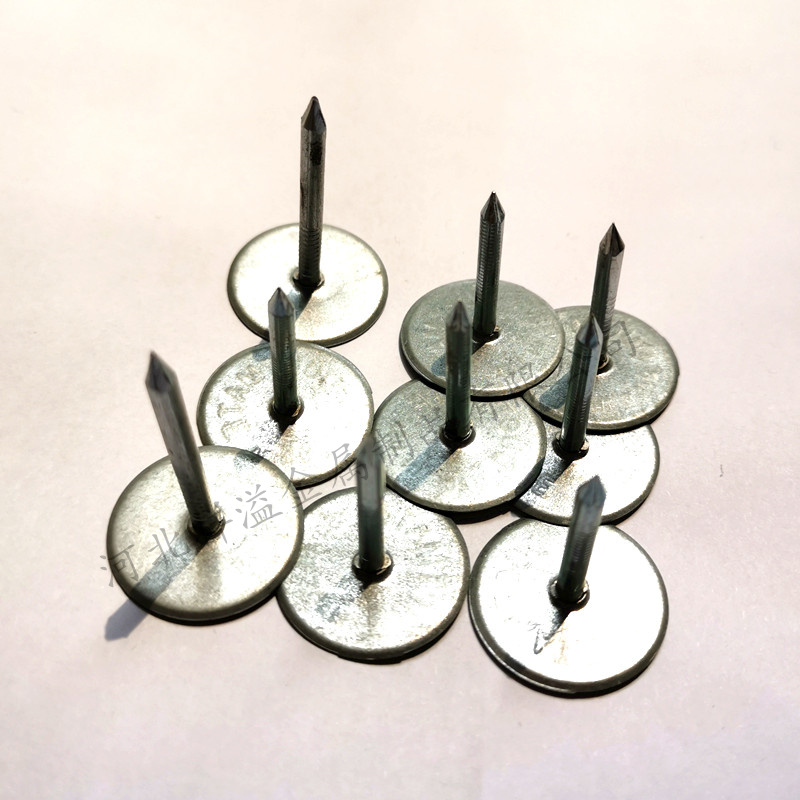

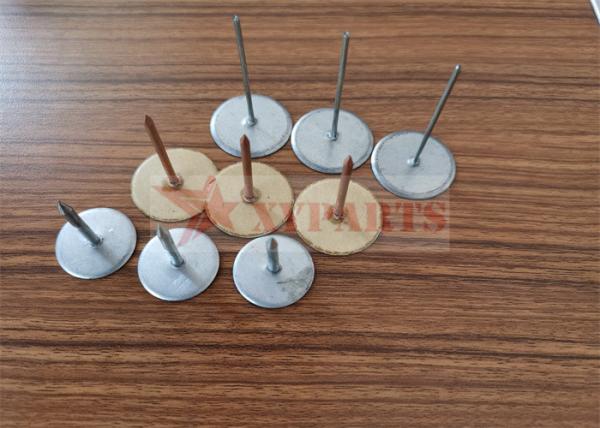

Images of the cuphead CD Insulation weld pins

Application equipments of cuphead CD Insulation weld pins

recommended for	cd insulation weld pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1"insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2"insulation(1-1/2"-2" ib density)	37.95mm
2"insulation(3ib densities)	48.77mm
3"insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm
