    30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins

    Ask Lasest Price
    Brand Name : HUIHAOCUSTOM
    Model Number : CUP HEAD-30/25
    Certification : ISO9001-2015
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 7000000 SETS PER MONTH
    Delivery Time : 10 WORK DAYS
    • Product Details
    • Company Profile

    30mm 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins

    30 25mm Kraft Paper Metal Round Base Duct Work Mild Steel Cup Head CD Weld Pins


    Specification of the cup head CD weld pins

    PhotoCD CUP HEAD PINS
    Part No.pin diameterround base sizepin Length
    HH-122.7mm1-1/2"Stnd up to 6"
    HH-103.4mm1-1/2"Special Order
    ZG-142.0mm1-3/16"Up to 2-1/2"
    ZG-122.7mm1-3/16"Stnd up to 6"

    Different types of the cup head weld pins


    standard typesdetails of standard
    For US, Canadathe standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8"
    For EU countriesthe washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
    notedthe washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

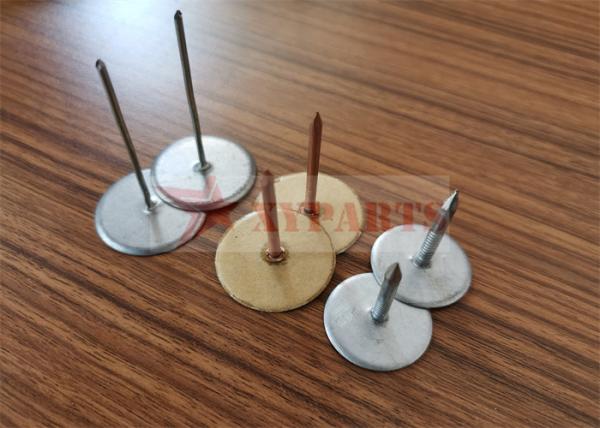

    Images of the cup head CD weld pins



    application equipments of cup head CD weld pins


    recommended forpin length before welding
    1/2" insulation(all densities)12.67mm
    1" insulation(1-1/2"ib density)17.63mm
    1" foam25.55mm
    1"insulation(3ib densities)23.72mm
    1-1/2" insulation(all densities)28.42mm
    2"insulation(1-1/2"-2" ib density)37.95mm
    2"insulation(3ib densities)48.77mm
    3"insulation(all densities)69.85mm
    4" insulation(all densities)95.00mm

    Package details of cup head weld pins


    12Gauge *2.5”cupped head pins1000Pcs26×26×18CM5.5KG
    12Gauge *4.5”cupped head pins1000Pcs26×26×32CM7.5KG
    14Gauge *2.5”cupped head pins1000Pcs26×26×18CM4.5KG
    14Gauge *4.5”cupped head pins1000Pcs26×26×32CM6.0KG
    25mm -self locking washers2000Pcs26×26×5.5CM5.0KG
    38mm -self locking washers1000Pcs26×26×5.5CM3.8KG
