Stud Welding Type HVAC Fasteners Stainless Steel Metal Ductwork CD Weld Pins

Ask Lasest Price
Brand Name :	HUIHAOCUSTOM
Model Number :	CUP HEAD-25-CD
Certification :	ISO9001-2015
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	7000000 SETS PER MONTH
Delivery Time :	10 WORK DAYS

Add to Cart

Product Details
Company Profile

Stud Welding Type HVAC Fasteners Stainless Steel Metal Ductwork CD Weld Pins

Features of the 25mm Cup head CD weld pins

Beveled Edge Cap: Prevents tearing of duct liner
Faster Welds: Forged diamond point design creates more electrical resistance for faster
Better Plating:Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
Reduced Down Time:Consistent point quality reduces frequency of machine adjustments.
Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
Applied with Standard Equipment: Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders

Specification of the 25mm cup head CD weld pins

Photo	CD CUP HEAD PINS
	Part No.	pin diameter	round base size	pin Length
	HH-12	3.0mm	1"	Stnd up to 2.5"
	HH-10	3.4mm	1"	Special Order

Package details of cup head weld pins as REFERENCE

10Gauge *2.5”cupped head pins	1000Pcs	26×26×18CM	5.5KG
10Gauge *4.5”cupped head pins	1000Pcs	26×26×32CM	7.5KG

Installation introduction of the cup head cd weld pins with welders

recommended for	pin length before welding
1/2" insulation(all densities)	12.67mm
1" insulation(1-1/2"ib density)	17.63mm
1" foam	25.55mm
1"insulation(3ib densities)	23.72mm
1-1/2" insulation(all densities)	28.42mm
2"insulation(1-1/2"-2" ib density)	37.95mm
2"insulation(3ib densities)	48.77mm
3"insulation(all densities)	69.85mm
4" insulation(all densities)	95.00mm

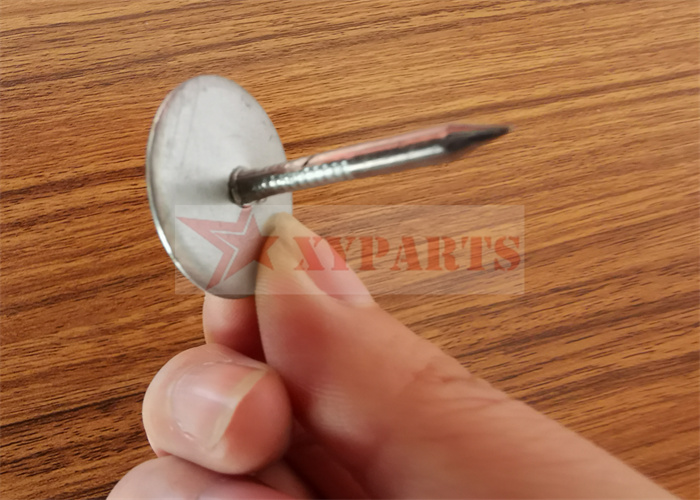

Images of the cup head CD weld pins

HEBEI XIANGYI METAL PRODUCT CO., LTD

HEBEI XIANGYI Fasteners products range from insulation pin & stud weld fasteners to special application accessories. HEBEI XIANGYI manufactures their own stud welders and stud welding supplies, and can satisfy virtually any welded fasteners requirements. Services included but not limited to stocking a full range of weld studs to stud welder repair & services. Whether at your site or in the factory repair center, HEBEI XIANGYI can service your entire application, plus offer training and assistance to new or experienced users alike. HEBEI XIANGYI also offers rental stud welding equipment.
