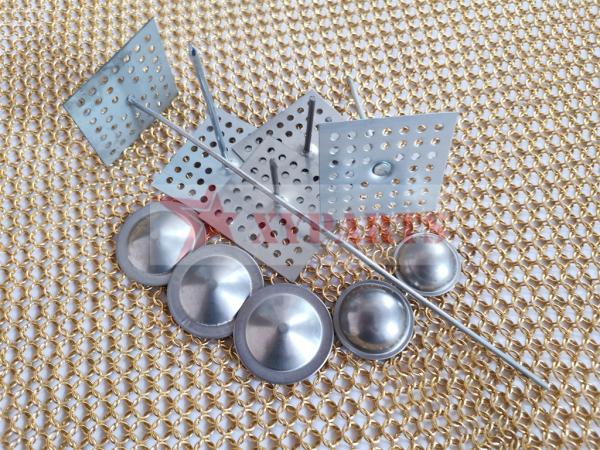

Steel 2-1/2" Perforated Base Insulation Hangers Spindle Type
perforated base insulation hangers Used to support rigid board and
batt type insulation on wall and ceiling applications. The
insulation hangers incorporate a 12-gauge or 3mm spindle (nail) and
a 2" x 2" square perforated base made of low carbon steel,
galvanized coated. Perforated base Insulation Hangers are also
great for installing fiberglass board panels onto ceilings. Simply
glue/screw/nail the base of the insulation fasteners to the
ceiling, pierce the fiberglass panel onto the pins (1 pin on each
corner minimum) and push the washer onto the pin to hold the panel
in place.
Quick Details of perforated base insulation hangers
- Production name: perforated base insulation pins, stamped base
insulation hangers, metal insulation support nails, rock wool metal
pins
- Base size in common: 40mmx40mm, 50mmx50mm
- Pin diameter: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
- Pin length: 15MM-280MM. the common length is 38mm, 63mm, 90mm,
120mm, 140mm, 160mm, 180mm, 203mm, 230mm
- surface treatment: zinc coated or copper coated for mild steel
material
Description details of perforated base insulation hangers
Perforated base insulation hangers are used to attach insulation
with the use of General Purpose Adhesive. It is specially
formulated to bond to metal, masonry and other sound substrates.
Surfaces must be clean and dry before adhesive is applied. After
the hanger is installed, insulation is imapled over the spindle and
secured with a self-locking washer.
Specification of perforated base insulation hangers
| Base | Material | Galvanized steel / Stainless steel |
| Dimensions | 50 x 50 mm (2” x 2”) ,25X25mm(1”X1”),40x40mm |
| Thickness | 0,4 mm (28 ga.) |
| Perforation | 44 holes, dia. 3.0 mm |
| Shank | Material | Mild steel(Galvanized or copper coating) |
| Stainless steel ,Aluminum,mild steel |
| Diameter | 2,7 mm (12 ga.)3mm, 3.4mm(10ga) |
| Lengths | 32 to 270 mm (1-1/4” to 10-5/8”) |
Locking washer
| Material | Galvanized spring steel/ Stainless steel |
| Diameter | Round : 30mm , Square:1-1/8 X 1-1/4”” |
| Thickness | 0.4 mm (28 ga.) |
| Edges | Bevelled |
Application of perforated base insulation hangers
Fiberglass Board Insulation: Plain, ASJ, FSK - Up to 2-1/2" thick
Fiberglass Duct Wrap
EPS & XPS Foam Board
Marine/Boat Insulation:Hull Insulation ,Engine Room/Compartment
Approved for Use on Metal Building Insulation

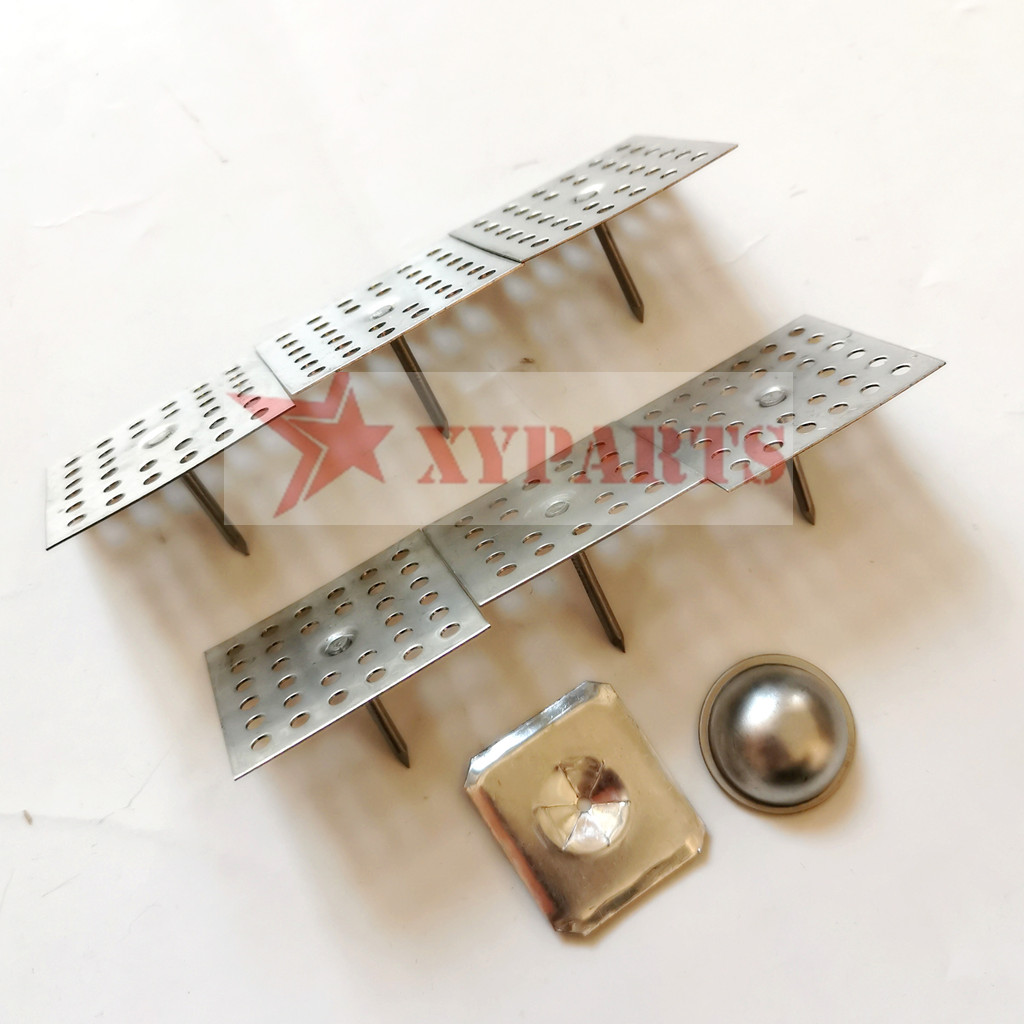

Images of perforated base insulation hangers
Fixing parts- SELF LOCKING WASHER AND DOME CAP WASHER
self locking washers or dome cap washers are sutable for fixing
insulation material with the perforated base insulation hangers.
and self locking washers include two types according to the shape,
round type self locking washer and square type self locking
washers. the diameters are common : 25mm, 30mm, 38mm, 40mm, 50mm,
and 62mm, others can be customized.
Package details of perforated base insulation hangers
1. common package: 500 sets per carton, woooden pallet out package
2. 500 sets include 500 pcs perforated base insulation hangers and
500 pcs self locking washers
3. please note; prick-proofing package, ensure safety.
4. we also can be your request to make the cartons for you.
