Heat Preservation Plastic Masonry Fastener 2-1/4" Disc
Attaches rigid continuous insulation to concrete / masonry
substrates. Available in multiple lengths for foam thicknesses or
1/2" - 5". Pre-drill hole with 5/16" masonry bit, then tap flush
with hammer. 2-1/4" diameter head sits flush on insulation.
Plastic masonry fastener Use for fastening EPS foam in PB EIFS
systems, rigid foam insulation, and waterproofing drainage fabric
into concrete or masonry block applications.
Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle: Impact anchor
Quick details of plastic masonry fastener
1.Materials:PE,PP.
2.Technique: thermal insulation nails are made by largely automatic
injection-molding machine to produce.
- 250-pieces per box
- No screws or pins required for plastic masonry fastener
- Won't rust or corrode
- Thermally efficient all plastic design
- Insulation fastener
Specification details of plastic masonry fastener
- Helps attach 1 in. to 1-1/2 in. rigid insulation or mineral wool
- Thermally efficient plastic design resists rust and corrosion
- Designed for use in 5/16 in. Dia hole in concrete or CMU block
- type of fixing: Through-fastening
| Insulation material thickness fastened - max | 0.79 in, 1.57 in, 2.36 in, 3.15in. 3.94 in.4.72in |
| plastic masonry fastener length | 2in, 2-3/4 in, 3-1/2 in, 4-1/4 in , 5 in, 6 in |
| Drill bit diameter | 5/16 in |
| Base materials | Masonry (solid), Masonry (hollow), Concrete (tough) |
Advantages of plastic masonry fastener
A. Anti-aging: the thermal insulation fastener can keep original
type and elasticity for a long time.
B. Anti-temperature shock: it will not harden under higher
temperature.
C. Higher bearing capacity of thermal plastic masonry fastener: the
thermal plastic masonry fastener can fix bigger benzene board area.
D. Anti-corrosion: the thermal masonry fastener will not get rusty
to corrode wall.
E. Well-insulated: this type of thermal plastic masonry fastener
can keep warm to maximum effect

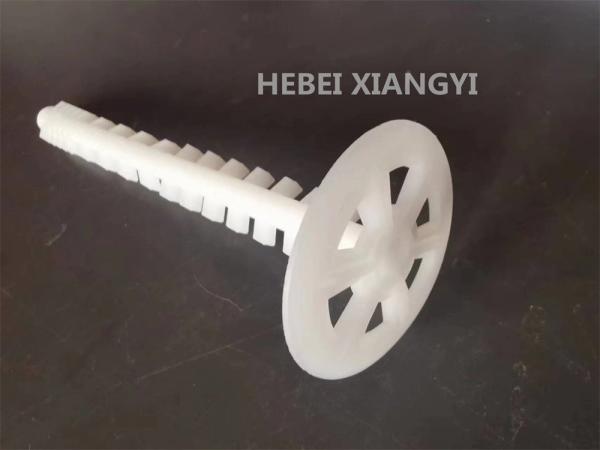

Image details of the plastic masonry fastener
We use the best PE, PP to ensure the purity of the insulation
nails, the production is pure and strong. and let me via a photo
show you clearly!
