35mm Round Disc Plastic Dome Cap Washer Insulation To Wood

Specification details of plastic dome cap washer

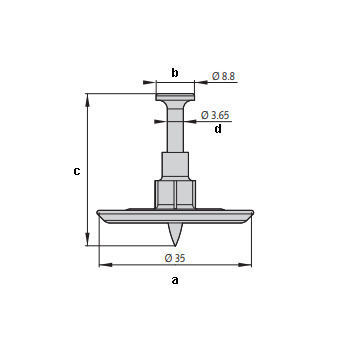

plastic dome cap washer CR9 concrete pins are usded for fastening waterproofing membranes. Pin Material: Galvanized Steel Pin Diameter(d): 3.65mm Pin Length(c): 30mm 40mm 50mm Head Diameter(b): 8.8mm Plastic dome cap Washer Diameter(a): 35mm Suit For: P370 or P200 Tools features of plastic dome cap washer Adequate bearing surface for superior clamping of thin membranes Helps prevent tearing or ripping of thin or soft membranes Soft washer conforms to uneven surfaces

Used For: The mechanical attachment of Expanded & Extruded Polystyrene Insulation Board (EPS or XEPS) to any screwable wood sheathing or siding. Other uses include the attachment of Stucco Mesh, Expanded Wire Lath and Fiberglass Fabrics over rigid insulation boards.

1 Plastic dome cap washer fasteners are recommended for any attachment.
2 When project site base material properties are questionable, site qualification is necessary.
3 Based on attachment to concrete (f'c = 2000 psi - 5000 psi), grouted CMU masonry walls, or 1/8" to 1/4" thick steel (Fy = 36 to 50 ksi).

Image details of plastic dome cap washer
