1.5 Inches Round Self Locking Insulation Washer
Round self locking insulation washer is kind of insulation
accessories, self locking insulation washer also named self locking
washer or speed clips or dome cap washer. if according to the
materials, include metal speed clips and plastic washers.
for the round self locking insulation washer, it is made of high
hardness metal material, include galvanized steel, stainless steel
and aluminum alloy, the common thickness is 0.4mm for steel, 0.5mm
of stainless steel and 0.7mm of aluminum alloy.
the center hole diameter of self locking washer is very important,
it too small, it will be hard for fixing insulation pins, if too
big. it will loose self locking. so Choosing a professional
manufacturer is key. HEBEI XIANGYI is a professional manufacturer
of insulation fasteners.
Specification details of round self locking insulation washer
| Name | 1.5 inched round Self Locking insulation washers |
| Material | 0.4mm high hardness stainless steel 304 / 316 /316l |
| washer diameter | 38mm, 1.5 inches |
| center hole | 2.5mm and 2.7mm |
| application | fixing 2.7mm and 3.0mm cd weld pins or b-metallic weld pins |
| stock quantity | 2000 pcs |
| Finished treatment | polished |
| Features | self locking washer shape design is avoid deformable |
| enough hardness to secure strength for the pins |
| rust proofing finished to ensure long left |

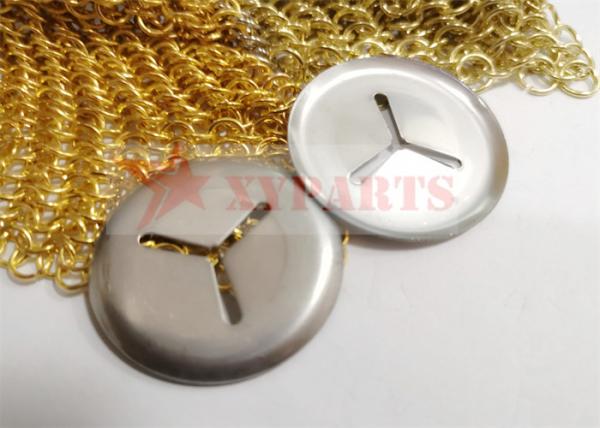

Image details of round self locking insulation washer
application of round self locking insulation washer
self locking insulation washer is usually fixing rock wool, glass
wool insulation material with CD weld pins or bi-metalic pins for
HVAC system, duct liner and shipping building.
packages details for round self locking insulation washer
 | - 500pcs per PP bag
- 6 pp bags per carton
- carton size: 41cm x28cm x17cm
- the weight is better than 22 kgs per carton,it is meet UPS or other
express company standard.
|
HEBEI XIANGYI METAL PRODUCT CO.,LTD
1. XIANGYI choose the quality stainless steel materials
2. XIANGYI do polished pretreatment for the raw material using
drawing machine.
3. XIANGYI purchase the multi-station cold forging machine to
ensure the better mechanical property of insulation fasteners to
match the standard(BS EN ISO13918:2008, AWS D1.1, etc.), or as per
customer's special requirement.
4. XIANGYI use the automatic riveting machine to install aluminum
ball on the end.
5. After rust prevention, XIANGYI 's insulation fasteners can
suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow
management
