HVAC System Metal Rock Wool fixing Insulation Pins

An all metal fire resistant fixing insulation pins that is both fast and easy to install.
insulation pins are Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, insulation pins are suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.

QUICK DETAILS OF THE ROCK WOOL FIXING INSULATION PINS

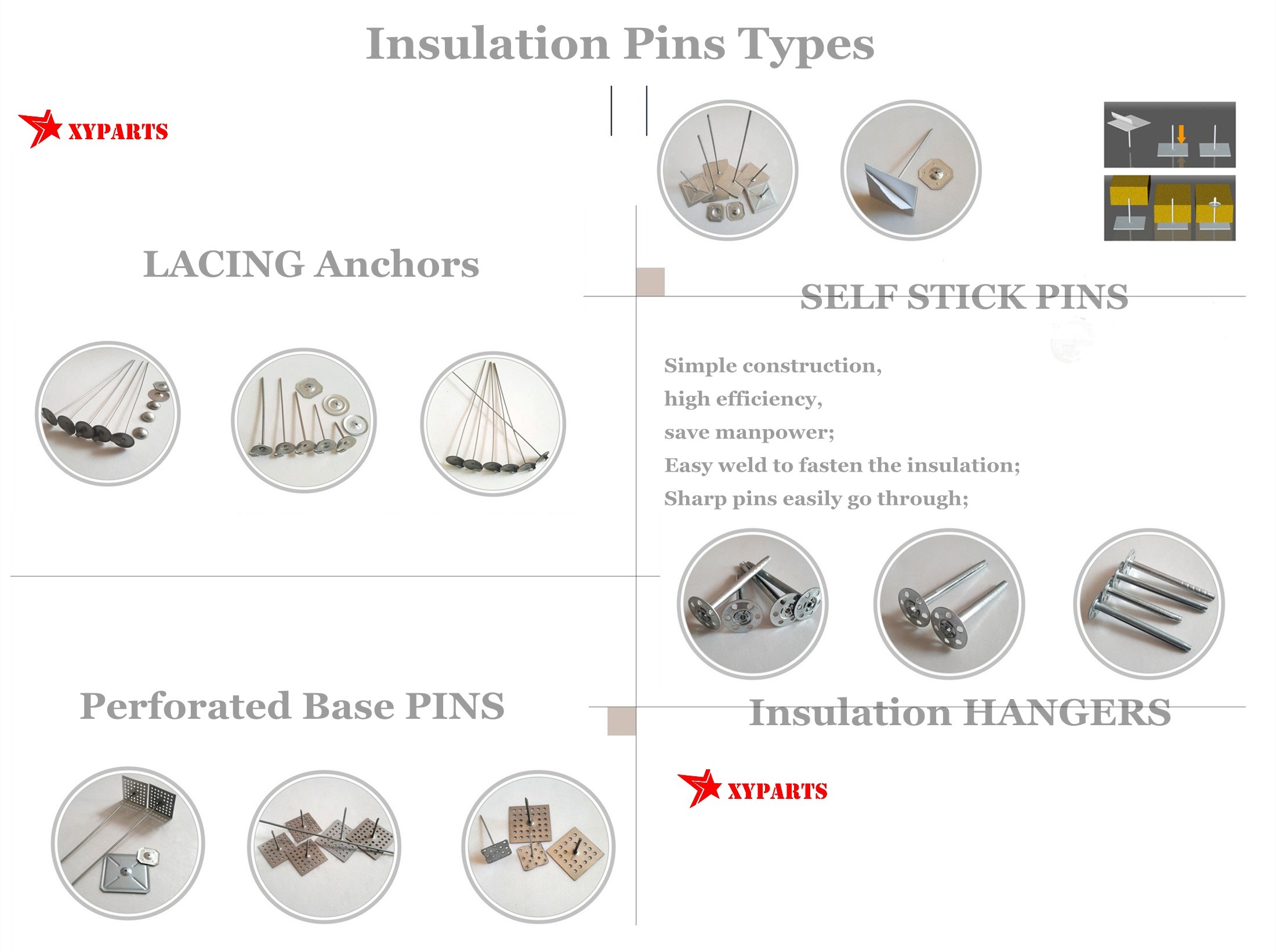

• Fixing Insulation pins including: perforated base pins, insulation hangers, self stick pins, cd weld pins, lacing anchor , lacing hooks
• Fixing parts including: self locking washer, dome caps washers
• Material: mild steel, stainless steel, aluminum and plastic
• insulation Pins length in common: 38mm-250mm (1-1/2"-10")
• fixing insulation pins' Features: Simple construction, high efficiency, save manpower;Easy weld to fasten the insulation;Sharp pins easily go through.

  Making installation more easier and more convenient, saving time and labor cost.

  All size and shape products will be made according to customers' drawings.

  Durable material,anti-corrosion and anti-rust

SPECIFICATION OF THE ROCK WOOL FIXING INSULATION PINS

pin diameter	Perforated base	pin length
12 ga (.106)	40mm /50mm Square	1
12 ga (.106)	40mm /50mmSquare	1-5/8
12 ga (.106)	40mm /50mm Square	2-1/2"
12 ga (.106)	40mm /50mm Square	3-1/2"
12 ga (.106)	40mm /50mm Square	4-1/2"
12 ga (.106)	40mm /50mm Square	5-1/2"
12 ga (.106)	40mm /50mm Square	6-1/2"
12 ga (.106)	40mm /50mm Square	8"
12 ga (.106)	40mm /50mm Square	8-1/2"
12 ga (.106)	40mm /50mm Square	9-1/2"
12 ga (.106)	40mm /50mm Square	10-1/2"
12 ga (.106)	40mm /50mm Square	12"

Insulation Pins With Perforated Base Plate is suitable for air tube insulation, glass curtain wall insulation, steel structure and other thermal insulation construction is not high temperature, the adhesive method can be used for thermal nail special fast dry glue or can be used for advanced foam adhesive.

head size	thickness	hook size	pin diameter	pin length
22mm	1mm	5mmx11mm	2mm-3mm	38mm-300mm
30mm	1mm	5mmx15mm	2mm-3mm	38mm-300mm
20mmx25mm	1mm	5mmx11mm	2mm-3mm	38mm-300mm

Pin size	Plug diameter	Plug length	Round base Plate size	Washer thickness	Carton
8*50	8mm	50mm	30/35mm	0.7mm	250pcs
8*60	8mm	60mm	30/35mm	0.7mm	250pcs
8*90	8mm	90mm	30/35mm	0.7mm	250pcs
8*110	8mm	110mm	30/35mm	0.7mm	250pcs
8*140	8mm	140mm	30/35mm	0.7mm	250pcs
8*170	8mm	170mm	30/35mm	0.7mm	250pcs
8*230	8mm	230mm	30/35mm	0.7mm	250pcs
8*300	8mm	300mm	30/35mm	0.7mm	250pcs

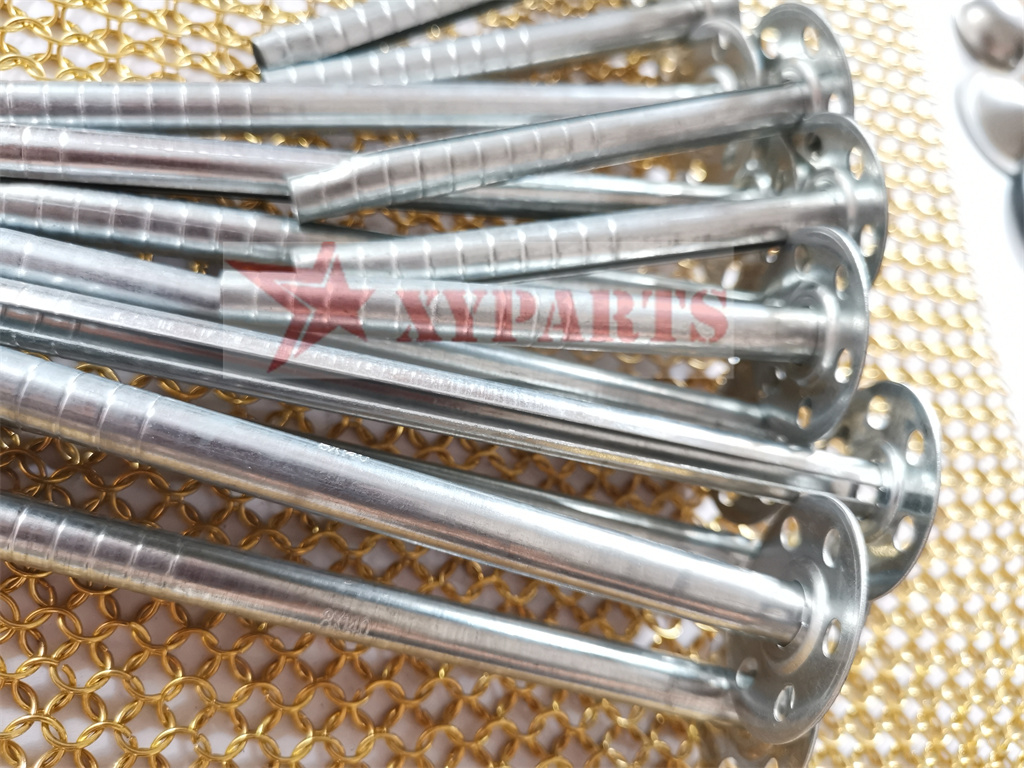

IMAGES OF ROCK WOOL FIXING INSULATION PINS

Fixing parts for Insulation pins

APPLICATIONS OF ROCK WOOL FIXING INSULATION PINS

• * Removable and Reusable
• * Simple and Quick Installation
• * Long Lasting and Durable
• * No Tools Required
• * Weatherproof, Chemical Resistant, UV Resistant
• * No Equipment Downtime
• * Blocks the Flame Path and Retards Heat Flow
