50mm Tape Base Rock Wool Fastener Adhesive Insulation Metal Self
Stick Pins
Quick details
- Product name: self adhesive pins, self stick nails, rock wool
insulation pins, self stick up hangers
- Pin material: stainless steel. mild steel, aluminum
- Pin diameter in common: 2.7mm or 3mm
- Pin length in common: 38mm, 45mm, 63mm, 90mm, 120mm, 140mm, 160mm,
180mm, 203mm
- Tape base size: 50mmx50mm
- Fixing parts: Self locking washer, dome cap washers, speed clips.
Descripition Of metal self stick pins
Self Stick Insulation Hanger easily install any type of insulation
up to 3.5" thick to air ducts, metal buildings, concrete
foundations - even to the underside of wooden roofs. Insulation
Hangers are perfect for installing fiberglass or rubber insulation
blankets or polystyrene board. Insulation Hangers have a sticker
backing to make placing easier. They also have a unique Easy-Peel
adhesive backing design so that there isn't any fumbling with the
release paper.
Technical date of the self stick pins
| pin diameter | base plate size | self stick pin length |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 1 " |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 1 - 5 / 8 " |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 2 " |
| 12ga ( 2.7mm /3mm) | 50mm square w / tape | 2 - 1 / 2" |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 3 - 1 / 2" |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 4 - 1 / 2" |
| 12ga ( 2.7mm /3mm) | 50mm square w / tape | 5 - 1 / 2" |
| 12ga ( 2.7mm /3mm) | 50mm square w / tape | 6 - 1 / 2" |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 8 " |
Polyethylene foam with aggresive pressure sensitive rubber resin
adhesive.
Service Temperature : -40 deg C to +70 Deg C
Highly Resistant to abrasion, corrosion and moisture.
Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury,
Cadmium free)
10 Minutes 180 degree Peel Adhesion : 30 N/25mm
500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3
Images of the self stick pins

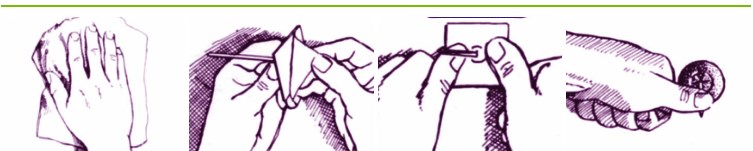

How to install the Self Stick Insulation Pins
1, clean the surface 2,Peel off backing 3, stick pin in place 4
,pressure the pin 5, wait 15-20 minutes
6, Install insulation and secure with self locking washer
 |
| Application: The average of 1-10 layers is 6pcs/m2, and the average of 11-20
layers is 7pcs/m2, 21-26, and 9pcs/m2. Any single block with an
area greater than 0.1m2 must be anchored, depending on the shape
and site conditions; the density of the anchor should be increased
around the insulation pins of the sun, under the mouth, and around
the edge of the hole. The distance is not more than 300mm, from the
edge of the base. Not less than 60mm |
Xiangyi company
FAQ of XIANGYI PARTS
Q: Are you a factory or trading company?
A: We are the specialized supplier of insulation pins fastener, can provide the best price.
Q: Where is your factory?
A: Our factory is located in RAOYANG city HEBEI province.
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you
are very urgent to get the price, please email us or contact us in
other ways so that we can offer you a quote.
Q:Can you make OEM or ODM service?
A: Yes. We can accept OEM service.
Q:How to ensure that every process's quality?
A: Every process will be checked by our quality inspection department
which insures every product's quality.
Q: Can you provide some sample before placing orders?
A: Samples are free,Please feel free to contact us.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX etc).Please confirm with us before
placing orders.
Q:What is your lead time?
A: It depends on the order quantity and the season you place the
order.Usually we can ship within 3-7 days for small quantity,and about 20-30 days for large quantity.
