70mm Stainless Steel Disc Washers With Perforated Round Hole For
Insulation Boards
****************************************************************************************************************************************************************
Brief introduction of Disc washers
Disc washers also named perforated disc washers, insulation fixing
washers, insulation board washers . It used with the metal screw or
insulation anchors to fix the board more firmly.
- Material : Stainless steel or galvanized steel
- Shape of the disc washers : Round
- Thickness of the disc washers:0.7mm in common , also could be
customized .
- Center hole size :7mm(according to the pins/screw to fix the
boards.
- Qty & dia of the Edge hole : 10mm *8 nos, or punched according the
the customer's design.
- Size :70mm or customized for large order.
- Fixing parts: insulation screw/anchors.
*****************************************************************************************************************************

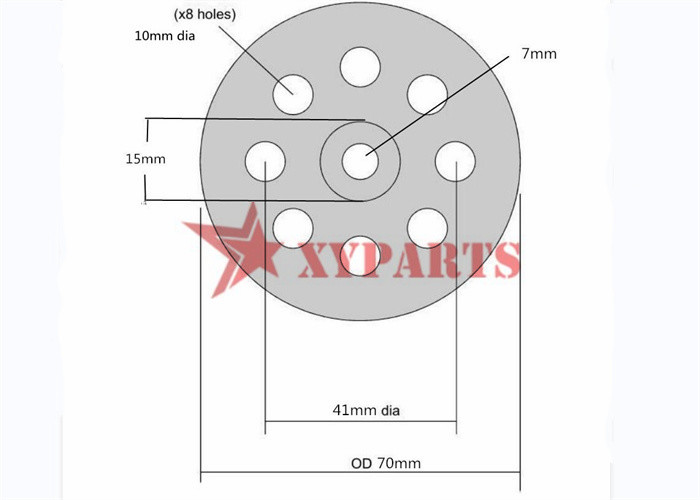

Specification of the Disc washers
 |
| Name | Dics washers, insulation frame washers, perforated disc washers |
| Material | Stainless steel or galvanized steel |
| Thickness | 0.7mm |
| Washer diameter | 70mm |
| Center hole dia | 7mm or meet with the screen/insulation anchors |
| Packing | 100pcs per bag |
| NOTE | The size also could be customized for large order . |
*****************************************************************************************************************************

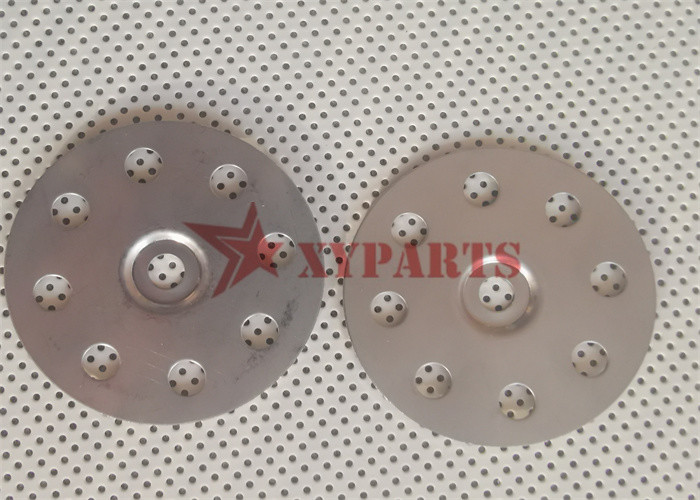

Image details of the Disc Wahser
*****************************************************************************************************************
Feature of the Disc Washers
Increasing the contact area between the insulation layer and the
disc gasket can achieve the purpose of high pressure bearing, safer
and more firm.
Firmer, good durability, high pressure, anti-corrosion,
moisture-proof, no deformation, size support customization
XIANGYI METAL PRODUCTS COMPANY
Our main products of the insulation fixing anchors including:
CD weld studs /pins , Bimetallic pins, Rovits ,Perforated base insulation pins, self stick/adhesive insulation pins , lacing
hangers, and self locking washers/speed clips , dome cap washers
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience,
and we have our own factory inHEBEI.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your
side.
Q3.Mode of transportation?
By sea or by air.
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed.
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.What kinds of payment you accept?
We accept T/T, L/C at sight .others could be discussed.
