2.7mm Heat Preservation Shipping Build Insulation Weld Pins With
Self-Locking Washer
Insulation Weld Pins Product Information :
The Capacitor Discharge Weld Pins is a Low Carbon Steel, Stainless
Steel or Aluminum weld pin that is
ideal to apply with pin welding or stud welding equipment.
Manufactured with a standard capacitor discharge
weld tip and flange, the Capacitor Discharge Weld Pins is popularly
used as an insulation fastener, in
combination with self locking washers (or “speed clips”) to secure
insulating material.
We recommend Capacitor Discharge Pins for welding to clean
surfaces. For difficult surfaces the “Power Base”
Weld Pin is designed to weld through paint and rust to eliminate
grinding of the base metal. Both are available
in various diameters and lengths.
We have various size for your reference ,special size pls contact
us to make mold !
Insulation Weld Pins Specification :
| Specification of Insulation Weld Pins |
| 10ga(3.4mm) | 12ga(2.7mm) |
| PIN DIA | Flange Dia | Pin Length | Pin dia | Flange dia | pin length |
| 3.4mm | 5.6mm | 1" | 2.7mm,3mm | 4.5mm | 0.75" |
| 3.4mm | 5.6mm | 1.5" | 2.7mm,3mm | 4.5mm | 1" |
| 3.4mm | 5.6mm | 2" | 2.7mm,3mm | 4.5mm | 1.25" |
| 3.4mm | 5.6mm | 2.5" | 2.7mm,3mm | 4.5mm | 1.5" |
| 3.4mm | 5.6mm | 3" | 2.7mm,3mm | 4.5mm | 2'' |
| 3.4mm | 5.6mm | 3.5" | 2.7mm,3mm | 4.5mm | 2.5" |
| 3.4mm | 5.6mm | 4" | 2.7mm.3mm | 4.5mm | 3" |
| 3.4mm | 5.6mm | 4.5" | 2.7mm.3mm | 4.5mm | 3.5" |
| 3.4mm | 5.6mm | 5" | 2.7mm.3mm | 4.5mm | 4' |
| 3.4mm | 5.6mm | 5.5" | 2.7mm.3mm | 4.5mm | 4.5" |
| 3.4mm | 5.6mm | 6" | 2.7mm.3mm | 4.5mm | 5" |
| 3.4mm | 5.6mm | 6.5" | 2.7mm.3mm | 4.5mm | 5.5" |
| 3.4mm | 5.6mm | 7" | 2.7mm.3mm | 4.5mm | 6" |
| 3.4mm | 5.6mm | 8" | 2.7mm.3mm | 4.5mm | 7" |
| 3.4mm | 5.6mm | 10" | 2.7mm.3mm | 4.5mm | 8" |
| | | 2.7mm.3mm | 4.5mm | 9" |

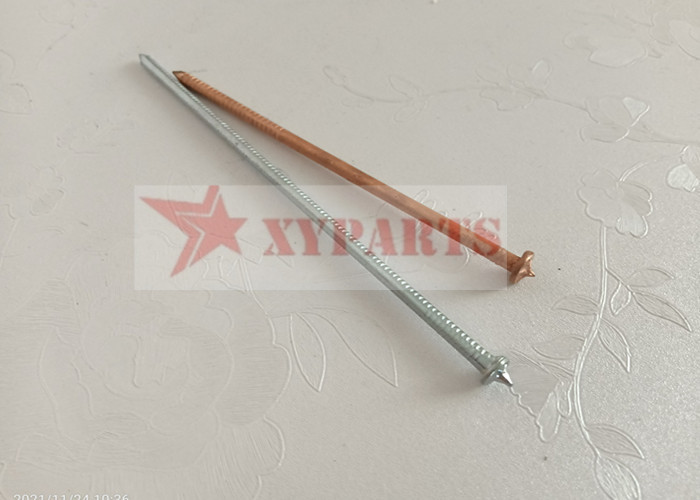

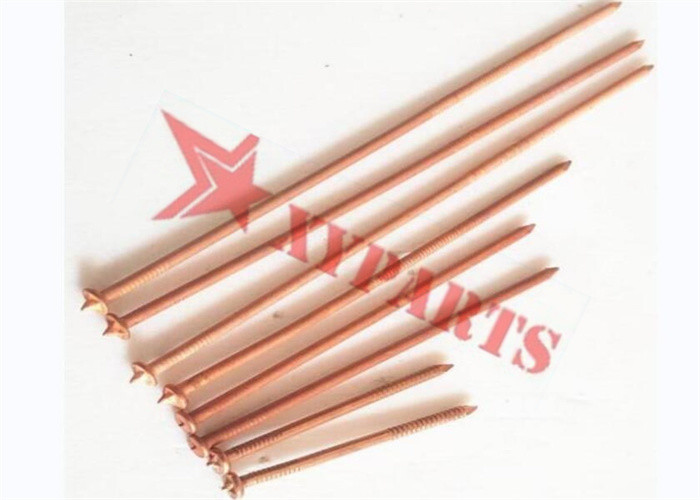

Pic Of Insulation Weld Pins :
Featurer Of Insulation Weld Pins :
Features of Capacitor discharge weld pin |
BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards
and providing a professional appearance.Climatech weldpin shanks
are copper plated. |
REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
STRONGER WELDS | Hardened steel point assures positive electrical contact for
complete sheet to pin fusion. |
CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating
range of temperatures of 0 degrees C to 121degrees C and are not
adversely affected at temperatures of 0 degrees C to 287 degrees C. |
VIBRATIONS | CD Weld pins will not fatigue or be physically affected by
vibrations normally found in high velocity air handling systems. |
Application Of Insulation Weld Pins :
The CD copper coating weld pin is a capacitor discharge weld
insulation fastener, these insulation weld pins
work with a stud welding machine, weld the pins on the sheet metal,
then put the insulation material through
the weld pins, press a self locking washer or metal clips or dome
caps onto the pin, bend over or clip off the
pin to finish fastening insulation installation. Weld nails are
usually used shipping industry.
Package Of Insulation Weld Pins :
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
