Flange Base 316 Stainless Steel CD Spot Weld Insulation Stud Pins
For HVAC System
Quick Detail Of Capacitor Discharge Spot Weld Pins:
- Product Name :Capacitor Discharge Spot Weld Pins
- Material:Stainless steel 304,316 ,Carbon steel ,Aluminum
- Surface treatment :copper plated ,zinc plated
- Pin diameter :1.5mm,2.7mm,3.0mm,3.4mm,4mm
- Pin length : 15mm-250mm
- Base type:power base or point base
- we have various size for your reference ,special size can make mold
Sample is free ,contact us to get the sample you want !
Capacitor Discharge Spot Weld Pins Specification :
| Specification of capacitor discharge spot weld pins |
| Spot weld Pin | Dimater(D) | 2.7mm,3.0mm,3.4mm ,(2mm is small pin) |
| Standard length(L) | from 20mm-200mm |
| Material | carbon steel ,stainless steel ,aluminum |
| Surface treatment | copper plated ,zinc plated,p |
| Fixing parts | size | 38mm self-locking washer |
| 32mm dome cap washer |
| Material | stainless steel ,carbon steel |
| Application | used for HVAC system |
| Packing | usually it is 300/500/1000 pcs in one plastic bag ,then in carton
,in pallet ,we also pacing it according your requirement |

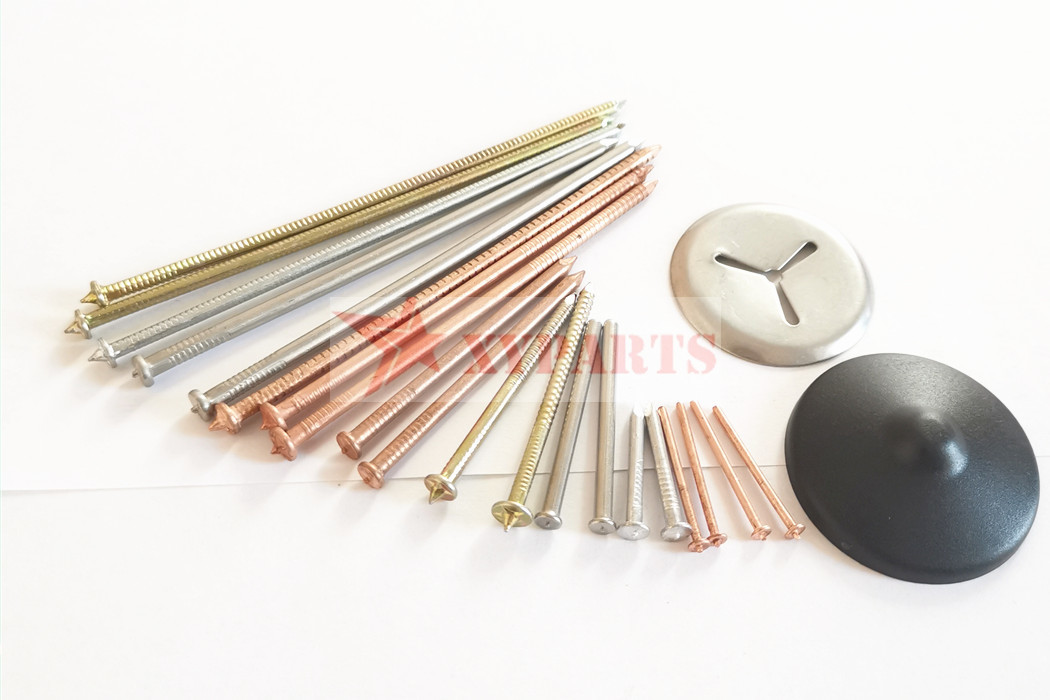

Pic Of Capacitor Discharge Spot Weld Pins :
Featurer Of Capacitor Discharge Spot Weld Pins :
Features of Capacitor discharge spot weld pin |
BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards
and providing a professional appearance.Climatech weldpin shanks
are copper plated. |
REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
STRONGER WELDS | Hardened steel point assures positive electrical contact for
complete sheet to pin fusion. |
CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating
range of temperatures of 0 degrees C to 121degrees C and are not
adversely affected at temperatures of 0 degrees C to 287 degrees C. |
VIBRATIONS | CD Weld pins will not fatigue or be physically affected by
vibrations normally found in high velocity air handling systems. |
Application Of Capacitor Discharge Spot Weld Pins :
The CD copper coating weld pin is a capacitor discharge weld
insulation fastener, these insulation weld pins
work with a stud welding machine, weld the pins on the sheet metal,
then put the insulation material through
the weld pins, press a self locking washer or metal clips or dome
caps onto the pin, bend over or clip off the
pin to finish fastening insulation installation. Weld nails are
usually used shipping industry.
Package Of Capacitor Discharge Spot Weld Pins :
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
