    65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base

    Ask Lasest Price
    Brand Name : XIANGYI
    Model Number : Insulation Bimetallic Pins
    Certification : ISO9001-2015
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200.000 pcs per month
    Delivery Time : within 15 days after confirm the order
    • Product Details
    • Company Profile

    65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base


    65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base


    Quick Details Of Insulation Bimetallic Pins :

    Product Name :Insulation bimetallci pins
    Base matrerial :aluminum 5000 series
    Base size :6mmx15mm in common
    Pin material :stainless steel ,galvanized steel ,aluminum
    Pin diameter :2.7mm,3.0mm,3.4mm
    Pin length :25mm-250mm
    Accessories :dome cap washer ,3 slots washer
    all washer are available in a variety of sizes ,shapes and material
    Usage :marine build

    Insulation Bimetallic Pins Specification:


    common size of
    BI-Metallic Pin diameterbase sizelength
    2.7mm8x1138 - 280mm
    3mm8x1138 - 280mm
    3.4mm8x1138 - 380mm
    Metal Weld Base Bimetallic Insulation Pins MATERIALSTANDARD OF MATERIAL
    Low Carbon Mild Steel 4.8 (weldable) EN 20898-1
    Stainless Steel A2-50 (weldable) EN ISO 3506-3
    Aluminium Alloy AlMg3 EN 573-3
    Pure Aluminium EN 573-3
    Lead Free Brass 4.8 (weldable) ISO 426 –1 / ISO 1638

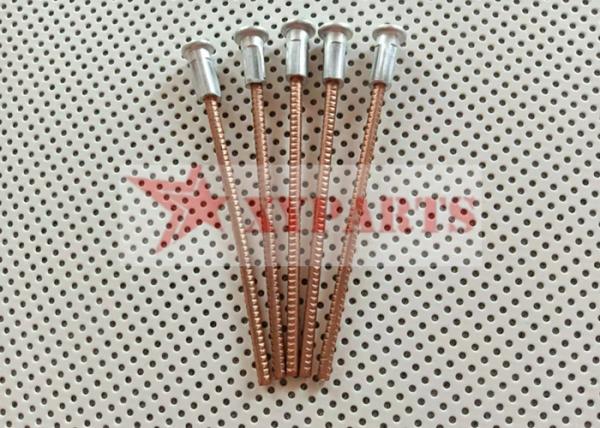

    Pic Of Insulations Bimetallic Pin:


    65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base

    Feature of Insulation Bimetallic Pins :

    features of the Insulation Bimetallic Pins
    BETTER PLATINGweldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.
    REDUCED DOWN TIMEConsistent point quality reduces frequency of machine adjustments.
    STRONGER WELDSHardened steel point assures positive electrical contact for complete sheet to pin fusion.
    CORROSION RESISTANCEPlating exceeds current SMACNA standards for corrosion resistance.
    TEMPERATURE RANGECD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
    VIBRATIONSCD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

    Accessories of Insulation Bimetallic Pins :

    Dome cap washerself-locking washer
    metal cap+clipsplastic cap +clips3 slots washer
    65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base

    Package of Insulation Bimetallic Pins :

    Material of the shaftMaterial fo the headLength of the headTotal lengthPacking of the Bi-metallic pins
    Stainless steelAluminum15mm in common35mm400pcs/bag,10bags/carton
    Stainless steelAluminum15mm in common45mm350pcs/bag,10bags/carton
    Stainless steelAluminum15mm in common55mm300pcs/bag,10bags/carton
    Stainless steelAluminum15mm in common65mm250pcs/bag,10bags/carton
    Stainless steelAluminum15mm in common80mm200pcs/bag,10bags/carton
    Stainless steelAluminum15mm in common95mm150pcs/bag,10bags/carton

    XY PARTS Company introuduce:

    Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,
    we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
    is as following :
    CD weld pins Lacing Anchors
    bimetallic pin Cup head weld pins
    Quilting pins perforated base pins
    self adhesive pins aluminum solar panel mesh clip
    all kinds of self locking washers, Dome caps.
