Galvanized Steel 35mm Dia Metal Fixing Washers With Dowels For
Insulation Boards
****************************************************************************************************************************************************************
Details of the 35mm metal fixing washers
- Material : MIld steel or SS304/316 material
- Shape of the washers : Round
- Type: Perforated type( Center hole +Nos of edge hole)
- Hole size : 5.0mm
- Dowels : 12-200mm, dia: 4.8mm
- Thickness of the washers:0.7mm in common ,
- Surface treatment : galvanized for the mild steel , polished for
the SS material
- Fixing parts: Metal dowels/nails , screws
- Application : to fix insulaitoin board with dowels or nails .
| Photos | 35mm metal washers |
 | Name | Perforated metal disc washers |
| Material | Stainless steel | Mild steel |
| Surface treatment | Polished | Galvanized /zinc coating |
| Thickness | 0.7mm |
| Washer diameter | 35mm |
| Center hole dia | 5mm in common , |
| Fixing dowels dia | 4.8mm |
| Packing | 200pcs or 500pcs per bag, then put into carton |
| NOTE | The size also could be customized for big order |
*****************************************************************************************************************************

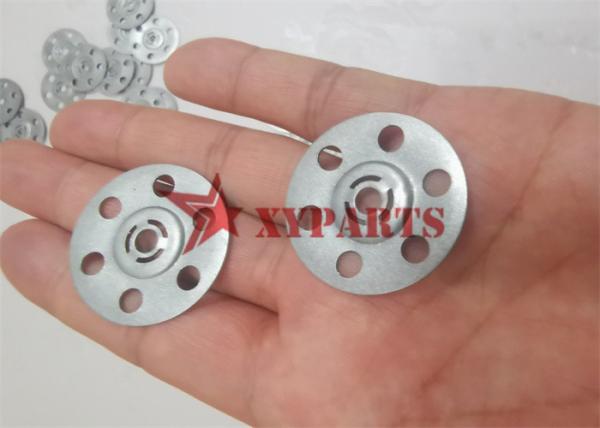

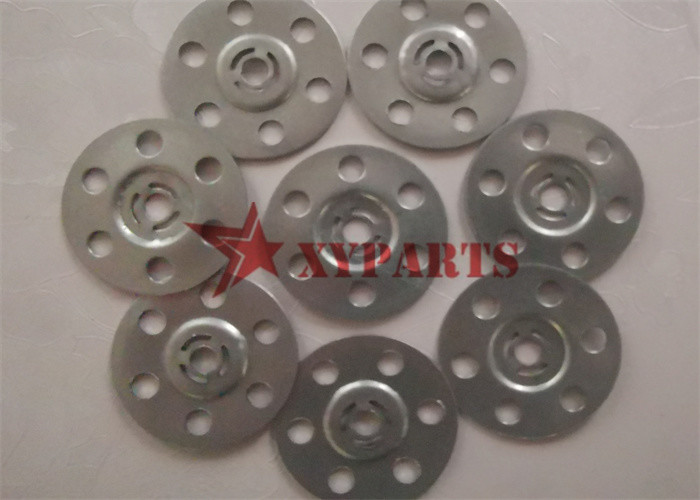

Image details of the 35mm metal fixing washers
*************************************************************************************************************Feature of the 35mm metal fixing washers
Increasing the contact area between the insulation layer and the
disc gasket can achieve the purpose of high pressure bearing, safer
and more firm.
Firmer, good durability, high pressure, anti-corrosion,
moisture-proof, no deformation, size support customization
*****************************************************************************************************************************************************************
Related products of the 35mm metal fixing washers
Metal plugs :made up of the 35mm metal washer and metal pipe.
Common type as the following :
| Size | Pin dia(D) | Pin length (L) | Base size (A) | Material thickness(T) | Packing |
| M8*50mm | 8mm | 50mm | 35mm | 0.7mm | 250pcs /box |
| M8*60mm | 8mm | 60mm | 35mm | 0.7mm | 250pcs /box |
| M8*90mm | 8mm | 90mm | 35mm | 0.7mm | 250pcs /box |
| M8*110mm | 8mm | 110mm | 35mm | 0.7mm | 250pcs /box |
| M8*140mm | 8mm | 140mm | 35mm | 0.7mm | 250pcs /box |
| M8*170mm | 8mm | 170mm | 35mm | 0.7mm | 250pcs /box |
| M8*200mm | 8mm | 200mm | 35mm | 0.7mm | 250pcs /box |
| M8*230mm | 8mm | 230mm | 35mm | 0.7mm | 250pcs /box |
XIANGYI METAL PRODUCTS COMPANY
Our main products of the insulation fixing anchors including:
CD weld studs /pins , Bimetallic pins, Rovits ,Perforated base insulation pins, self stick/adhesive insulation pins , lacing
hangers, and self locking washers/speed clips , dome cap washers
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience,
and we have our own factory inHEBEI.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your
side.
Q3.Mode of transportation?
By sea or by air.
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed.
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.What kinds of payment you accept?
We accept T/T, L/C at sight .others could be discussed.
