14Ga X63mm SS 304 Lacing Hangers Fix Insulation Blankets
Details of the SS lacing hangers
LACING HANGERS is a insulation hanger that is fabricated by a round
or rectangular hook attached a pin, it is used for fasten the
insulation blanket or removable cover. Press the pin through
insulation and put the self-locking washer
onto the pin, bend over or clip off the pin. The insulation
material can be laced by hook with a tie wire.
- Name:Lacing hangers , lacing anchors
- Material: stainless steel 304/316 in common
- hangers thickness: 14 GA, 12GA, In common
- hangers length: 63mm,114mm in common, or customized length.
- lacing anchor types: US standard, EU standard and AU standard
- Head types: 22m round head hook and 30mm round head hook
- Other parts: self speed clips, dome cap washer, Lacing wire, lacing
ring, lacing hook and lacing washer
- Washers size :22mm,25mm,30mm in common.
Specs of the SS lacing hangers
pin diameter | head diameter | head material thickness | hook length | length of the lacing anchor |
14 ga (.080) | 7/8"/30mm | 1mm | 11mm | 1"-4-7/8" |
12 ga (.106) | 7/8"/30mm | 1mm | 11mm | 1"-4-7/8" |
US Standard of lacing anchor | EU standard of lacing anchors | Australia standard of lacing anchors |
The head diameter is 1",
the pin diameter is 10Ga,
the length we have 1/2"- 2 " | The head diameter is 30mm,
the pin diameter is 2.7mm,
there are many different length for EU market,
the length we manufactured-22mm- 100mm
Some customer will need kraft paper under head,
some customer will need a plastic sleeve on pin, | People in Australia will need the US standard or EU standard weld
pins, someone will need the 14Ga pin.
The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free |

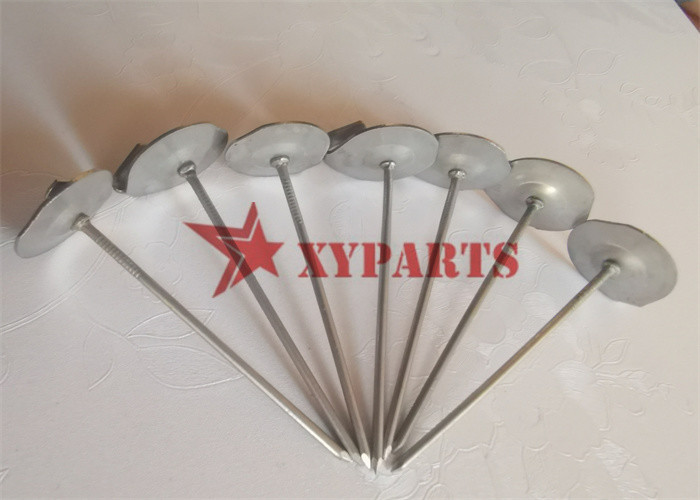

Images of SS lacing hangers
Other fixing parts for lacing anchor- Self locking washer, dome cap
, lacing hook, lacing rings
Applications of the SS lacing hangers
- Rooftop insulation (can be applied under shingles)
- Process piping and tanks
- Petrochemical processing
- Refineries and manufacturing plants
- Hot and cold food processing
- Wine tank insulation
- Retort ovens
- Refrigerated rooms and buildings
- Heat conservation applications
- Boats and ships

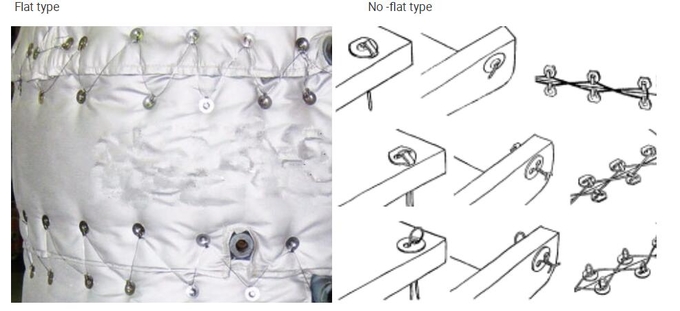

How to install the SS lacing hangers
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the
insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
