1.5 Mm *20 Mm Length 3/4'' Copper Disc Rivets For Fixing Cement
Roofing
Introduction of the Copper Disc Rivets
The copper disc rivets fasteners allow the fixing in a single
operation of non-aluminum faced insulation such as slabs or wired
mats on metal surfaces (ventilation ducts, metal beams, metal
industrial, ventilation or air condition equipment, etc.)
- Name: Copper disc rivets . also named copper roofing rivets.
- Material : All in copper material
- Base type :umbralla disc shape
- Disc size :19mm
- Pin diameter:1.5mm,2.0mm in common
- Pin length :20mm,25mm,30mm, etc
- Application : for fixing the cement roofing .
- Packing :500pcs ,1000pcs per carton in common , also could be
packed according to the customer's requiremetns.
| Product name | Copper DIsc Rivets |
| material | All in copper material |
| Application | fixing cement roofing |
| base dia | 19mm in common , or customized size for large order |
| pin diameter | 1.5mm | 2.0mm | customized diameter |
| pin length | 20mm | 25mm | 30mm | Customized length |
| Note | The material could be mild steel , then with copper plated surface
, it will could save much more money . |
| Packing | 100pcs/500pcs/1000pcs per carton , then put the cartons on pallets.
also could be packed according to the customer's requirements. |

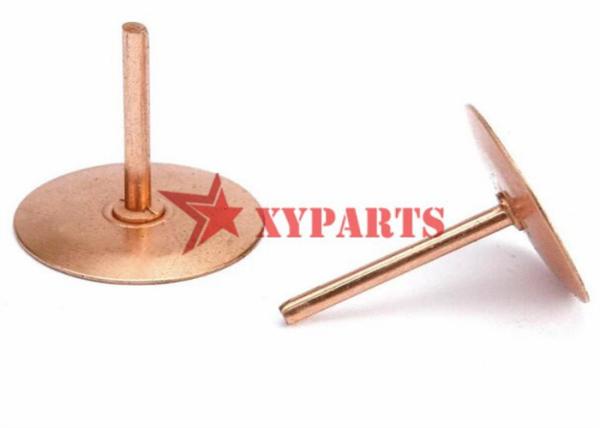

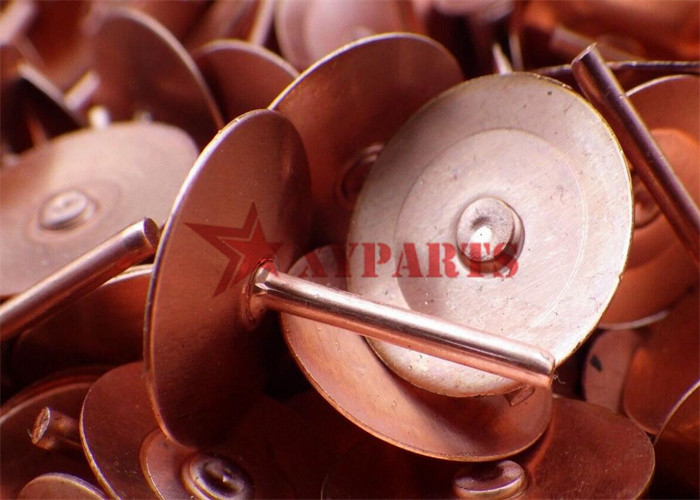

Images of the Copper Disc Rivets :
Features of the Copper Disc Rivets
- The copper material is soft, so it is easy to bend when
installation
- the base material must choose harhness copper sheet. which could
lock firmly.
- We could produce the pisn as your deisgn with new type copper head
weld pins.
- Cupped Head could reduces jams and machinery down time while preserving the
insulation.
- Oversized head increases the welding surface, resulting in a
reduction in misfires and superior strength.
- Copper pin:Forged diamond point for strength and weld consistency.
Installation of the Copper Disc Rivets:
We also provide the related Welding machine for installtion .
Packing methods and delivery methods of the Copper Disc Rivets:
| Common package quantity per carton | Customized packing |
| 100pcs | The packaging allso could be as request, Lables is available for big order, |
| 250pcs |
| 500pcs |
| 1000pcs |
Delivery methods of the Copper Disc Rivets
- Sample or small order by air or express, such as TNT, FedEx , DHL,
etc
- Big order delivery by sea , or by air for urgent order .
Xiangyi company introuduction :
XY main products:
Perforated base insulation pins, self stick/adhesive insulation pins, CD weld studs /pins , Bimetallic weld pins,Marine weld pins ,Copper disc rives, lacing hangers, and self locking washers/speed
clips , dome cap washers. and other insulation fixing anchors .
Welcome to inquiry XIANG YI. We could provide best quality goods
and service !
