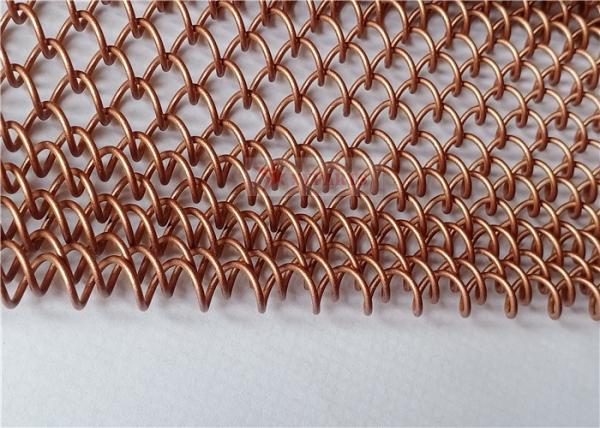

Aluminium Chain Link Metal Mesh Curtain Copper Color For Hotel
Decoration
Quick Details Of Aluminum Chain Link Metal Mesh Curtain:
This product is made by using high-quality aluminum alloy wire and
produced by a spiral
knitting process.
Aluminium chain link metal mesh curtain has good drapeability and
can be folded, like a
cloth curtain, with flexible movement.
Additionally, this product can be anodized into various colors,
which creates a very dynamic
and metallic modern decorative art style, and is favored by
architects and users.
Item: Aluminium Chain Link Metal Mesh Curtain Material: Aluminium Alloy Wire (Stainless steel or brass or galvanized steel also could be made.) Color Finish: Anodized Wire Diameter: 1.0mm or 1.2mm as standard Hole Diameter: 6x6mm, 8x8mm as standard Product Customization: support Installation Design Service: support Installation Guidance: support Installation Accessories: available
|
 |
Description Of The Chain Link Metal Mesh Curtain:
Chain Link Metal Mesh Curtain has always been popular for modern
interior decoration,
such as wall coverings, window screens, space dividers, ceilings etc.
Usually metal mesh curtain is used like curtain with a fullness of
180% – 200%.
Curtain track (straight / arc track) and attachments are offered.
The only thing for customer to do is to fix the track and slip
rollers into track.
Products | Chain Link Metal Mesh Curtain |
Materials | Aluminimum Alloy |
Wire Diameter | 1-1.2mm |
Hole shape | Rhombic hole also named diamond hole |
Hole size | 4-10mm |
Weight | 1.7 kg/m2 - 6 kg/m2 (depending on shape and material chosen). |
Max wi | 40% - 85% |
Surface treatment | Baking varnish, anodic oxidation, acid washing |
Color | Original metallic color or spray into other colors.
Gold is most popular, also could be Silver, brass-yellow,
ultra-black, Chinese red, purple, bronze, pearl gray, etc |
Packing | In coil , then wrapped with plastic film or waterproof paper , put
the mesh into wooden case.
 |
Technical Data Of Chain Link Metal Mesh Curtain:
Material | Wire diameter | Aperture | Thickness | Weight |
Carbon steel | 0.9mm | 6.3mm | 3/16″ | 5.8mm | 4.0kg/m2 |
1.2mm | 8.5mm | 1/4″ | 7.1mm | 6.0kg/m2 |
1.0mm | 6.8mm | 1/4″ | 6.5mm | 5.5kg/m2 |
Stainless steel | 1.0mm | 8.4mm | 1/4″ | 6.7mm | 3.5kg/m2 |
1.2mm | 6.8mm | 3/16″ | 6.5mm | 5.8kg/m2 |
1.2mm | 8.5mm | 1/4″ | 7.1mm | 5.0kg/m2 |
Aluminium-magnesium alloy | 1.2mm | 8.5mm | 1/4″ | 7.1mm | 2.0kg/m2 |
1.2mm | 6.8mm | 3/16″ | 6.5mm | 2.5kg/m2 |
1.0mm | 5.5mm | 3/16″ | 5.5mm | 1.7kg/m2 |
2.0mm | 12mm | 1/2″ | 12.0mm | 3.kg/m2 |
 |
Installation Of The Aluminium Chain Link Metal Mesh Curtain:
We'd supply the installation frame design service for you.
Customers can choose straight or curvy track system on their
request.
It is easy to install the track system.
First, the track should be fixed into the wall or the place where
the drapery will used for.
Then you can slide metal pulleys into the track.
The metal coil chain mesh curtain commonly is with aluminum
material, it could be
installed by straight or curved tracks.
 |  |
 |
step 1 : pulley wheel slip into the track step 2 : fix the track head in two sides step 3 : confirm the gap of the metal mesh curtain folds step 4 : connect and fix the track, metal chain and mesh curtain by
screws step 5 : install the connection for track and wall step 6 : installation renderings |
Application Of The Aluminium Chain Link Metal Mesh Curtain:
projects of aluminum chain link metal mesh curtain | |
 | Our aluminum chain link metal mesh curtain is widely used in
interior and exterior applications. Examples includes: exterior
facades, wall covering , draped and suspended ceilings, column
cladding ,sunshades and canopies, gates, exhibit booths, retail
displays, elevator cabs, stairs and balustrades, furniture and
cabinetry, partition screens, etc.
|
