40x40 Self Adhesive Insulation Fixing Pins Galvanized Steel Or Stainless Steel

Ask Lasest Price
Brand Name :	XIANGYI
Model Number :	self-adhesive insulation fixing pins
Certification :	ISO9001-2015
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	380000 sets per 30 days
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

40x40 Self Adhesive Insulation Fixing Pins Galvanized Steel Or Stainless Steel

Galvanized Steel Or Stainless Steel Self Adhesive Insulation Fixing Pins

Specifications Of The Self Adhesive Insulation Fixing Pins

Pin diameter	Base plate size	Insulatiion pin length
12ga ( 0.106 " )	2 " square w / tape	1 "
12ga ( 0.106 " )	2 " square w / tape	1 - 5 / 8 "
12ga ( 0.106 " )	2 " square w / tape	2 "
12ga ( 0.106 " )	2 " square w / tape	2 - 1 / 2"
12ga ( 0.106 " )	2 " square w / tape	3 - 1 / 2"
12ga ( 0.106 " )	2 " square w / tape	4 - 1 / 2"
12ga ( 0.106 " )	2 " square w / tape	5 - 1 / 2"
12ga ( 0.106 " )	2 " square w / tape	6 - 1 / 2"
12ga ( 0.106 " )	2 " square w / tape	8 "

Stainless Steel Self Adhesive Insulation Pins For Ductwork Corrosion Resistant 0

The Self-locking Washers Used For Fixing The Self Adhesive Insulation Fixing Pins

type	size	material	center hole	Picture
round	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm	galvanized steel, stainless steel, aluminum	2.7mm, 3mm
square	29mmx31mm	galvanized steel, stainless steel, aluminum	2.5mm,
square	65mmx65mm	galvanized steel, stainless steel, aluminum	2.7mm, 3mm

Technical Data Of The Self Adhesive Insulation Fixing Pins

Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
Service Temperature : -40 deg C to +70 Deg C
Highly Resistant to abrasion, corrosion and moisture.
Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
10 Minutes 180 degree Peel Adhesion : 30 N/25mm
500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3

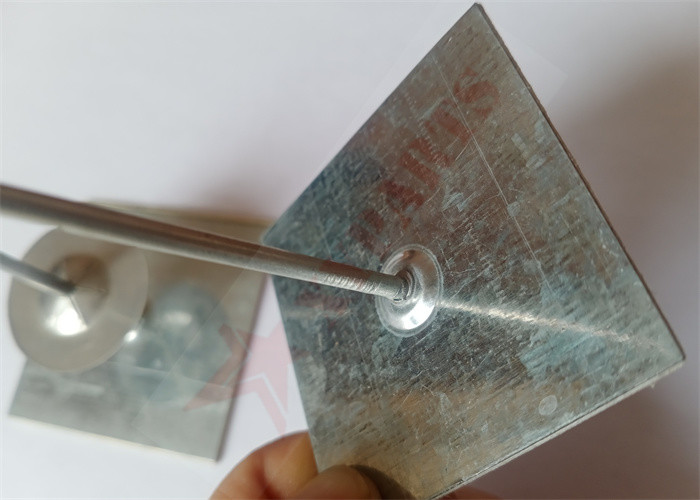

Images Of The Self Adhesive Insulation Fixing Pins

40x40 Self Adhesive Insulation Fixing Pins Galvanized Steel Or Stainless Steel

Package Details Of The Self Adhesive Insulation Fixing Pins

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM

XiangYi Metal Products Company -Insulation Pins And Washers Manufacture

Hebei Xiangyi Metal Product Co.,ltd manufactured the following listed insulation pins and washers

with good quality and price, if you have interest purchasing from China, our company definitely is a

good choice for you.

Insulation Pins	Insulation Washers
Perforated base insulation hangers	Self locking washers
Self stick insulation pins	Dome cap washers
Lacing anchors	Insulation clips
CD weld pins	Plastic insulation anchors
BI metallic pins	Insulation discs
Insulation fixing anchors
J hooks
Impaling clips
Solar Panel Clips

Self Locking Speed Clip Insulation Pin Dome Cap Washer 6
