    120mm Stick Pin Self Adhesive Insulation Hangers For Rockwool

    Ask Lasest Price
    Brand Name : XIANGYI
    Model Number : self-adhesive insulation hangers
    Certification : ISO9001-2015
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 380000 sets per 30 days
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    120mm Stick Pin Self Adhesive Insulation Hangers For Rockwool

    120 mm Stick Pin Self Adhesive Insulation Hangers For Rockwool

    Quick Details Of The 120 mm Stick Pin Self Adhesive Insulation Hangers For Rockwool

    Self-adhesive hangers are designed to fix insulation materials on smooth surfaces such as

    air ducts, attenuators, chambers and enclosures.

    It consists of a pin, firmly crimped on a high quality self-adhesive base.


    Material

    Galvanized steel

    Base size

    50x50mm

    Base thickness

    0.4mm

    Adhesive

    thickness

    1.0mm

    Pin diameter

    2.7mm

    Pin length

    120mm

    120mm Stick Pin Self Adhesive Insulation Hangers For Rockwool

    Specifications Of The Self Adhesive Insulation Hangers For Rockwool


    Material: Galvanized Steel Or Stainless Steel.

    Base Plate Shape: Square in common, also can be made as request.

    Base Plate Size: 50*50mm in common or according to the customer's requirement.

    Base Plate Thickness: 0.4mm

    Adhesive Thickness: 1.0mm

    Pin Diameter: 2.7mm or 3mm in common.

    Pin Length: 19mm to 400mm

    Washer Diameter: 30mm 32mm 35mm 38mm 40mm etc.

    Washer Thickness: 0.4mm


    Stainless Steel Self Adhesive Insulation Pins For Ductwork Corrosion Resistant 0

    Technical Data Of The Self Adhesive Insulation Hangers For Rockwool

    Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
    Service Temperature : -40 deg C to +70 Deg C
    Highly Resistant to abrasion, corrosion and moisture.
    Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
    10 Minutes 180 degree Peel Adhesion : 30 N/25mm
    500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3

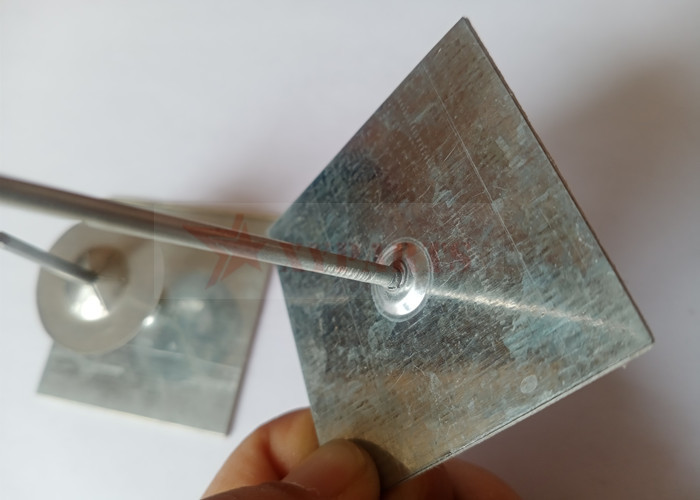

    Images Of The Self Adhesive Insulation Hangers For Rockwool


    120mm Stick Pin Self Adhesive Insulation Hangers For Rockwool120mm Stick Pin Self Adhesive Insulation Hangers For Rockwool

    Package Details Of The Self Adhesive Insulation Hangers For Rockwool


    PIN LENGTHCARTON SIZEQTY/CARTON
    38MM41CMX28CMX17CM1000PCS
    50MM-65MM41CMX28CMX17CM500PCS
    70MM-84MM30CMX28CMX29CM500PCS
    90MM-120MM30CMX30CMX30CM500PCS
    130MM-160MM30CMX30CMX35CM500PCS
    170MM-203MM30CMX30CMX28CM250PCS
    OTHERSSUPPORT CUSTOM

    XiangYi Metal Products Company -Insulation Pins And Washers Manufacture


    Hebei Xiangyi Metal Product Co.,ltd manufactured the following listed insulation pins and

    washers with good quality and price, if you have interest purchasing from China, our company

    definitely is a good choice for you.


    Insulation Pins

    Insulation Washers

    Perforated base insulation hangers

    Self locking washers

    Self stick insulation pins

    Dome cap washers

    Lacing anchors and rings

    Insulation clips

    CD weld pins

    Insulation discs

    BI metallic pins

    Rock wool insulation plugs


    J hooks


    Impaling clips


    Solar Panel Clips

    Self Locking Speed Clip Insulation Pin Dome Cap Washer 6

    1. Are you a factory or a trader?
    A: We have our own factory and international trading company
    2. Do you support product customization?
    A:Yes, the material, the size, the surface finish all could be customized.

    3. How do you control and ensure product quality?

    We strictly implement the "IATF 16949 Quality Management System" standard in production,

    and we will send you videos and pictures during the production and shipment process.

    4. How can I get samples?
    1) Standard products: We provide free samples under 5 dollars.
    2) Custom products: We charge 1-3 times the unit price (based on product specifications)

    3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others.

    4) You need to pay for shipping. Samples will be sent as soon as payment is received!
    5. What is your preferred payment item?
    1) Samples are paid via paypal and T/T is 100% paid.
    2) Bulk orders: T/T 30% prepaid, the balance should be paid before shipment.

    Self-adhesive hangers are designed to fix efficiently insulation on smooth surfaces such as

    air ducts, attenuators, chambers and enclosures.

    It consists of a pin, firmly crimped on a high quality self-adhesive base.
