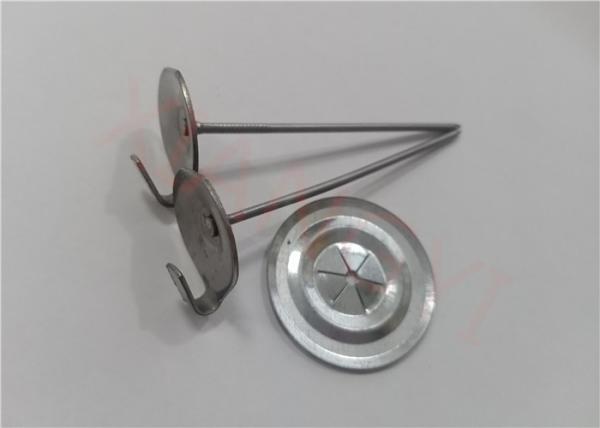

Stainless Steel Lacing Anchors For Fastening Lagging To Exhaust
Systems
Common Size Of The Stainless Steel Lacing Anchor System:
| Anchor type | Head size | Hook size | Pin diameter | Pin length | Material |
| min round head | 22 mm | 5x11mm | 2mm, 2.2mm, 2.7mm | 38mm - 203mm | SS, MS |
| round head | 30 mm | 5x15mm | 2mm, 2.2mm, 2.7mm | 100mm - 300mm | SS, MS |
| oblong head | 20 x 25mm | 5x11mm | 2mm, 2.2mm, 2.7mm | 38mm - 203mm | SS, MS |
* Stainless Steel is a popular material while this type lacing
anchors is also made in mild steel
* Stamped "no ab" to denote 'no asbestos'
* Used as the means of fastening lagging to exhaust systems (tie
wire as the lacing material).
* Lacing anchors can be used to add additional support to existing
lagging, or used with other
raw insulation material
| Lacing rings | material: stainless steel 304 / 316 |
| type: weld type or unweld type all avalible |
| size: 3mm x 30mm |
| Self locking washers | material: SS, MS. G.S |
| Types: round type and square type |
| size in standard: 25mm, 30mm, 38mm |
| Dome cap washers | material: SS, MS, G.S |
| Standard size: 22mm, 27mm, 30mm, 40mm |
Product Display:
 | Item: stainless steel lacing anchors | Gauge | Wire Diameter | Length | | 14 | 0.080" | 2-1/2" | | 14 | 0.080" | 4-1/2" | | 12 | 0.1055" | 2-1/2" | | 12 | 0.1055" | 4-1/2" |
|
 | Item: self locking washers Size: 25mm 30mm 38mm For: 12G 14G pins |

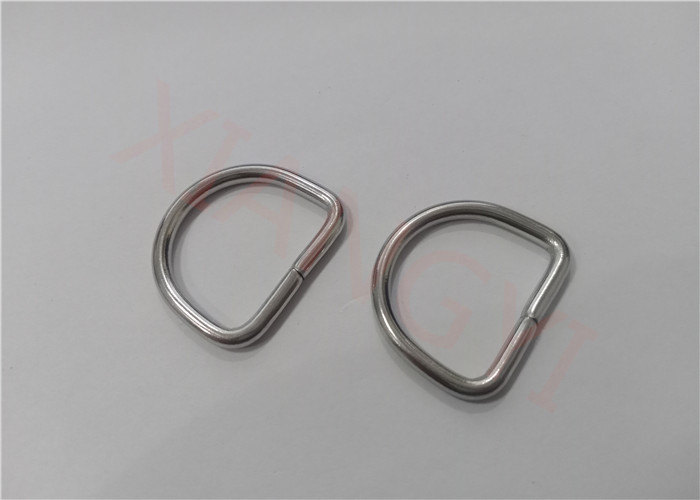

 | Item: D rings Material: stainless steel Size: 20x30mm Wire Diameter: 3mm |
FAQ
* if you want to know the technical data and specification tape of
lacing anchor hook washers & accessories,
contact with me by e-mail, we will send them to you at once.
* if your order is small, please don't worry, we have common size
of cacing anchor & accessories in our stock.
* if you want to confirm the details of the lacing anchor &
accessories, we will supply smaples or drawing of
lacing anchor & accessories
* if your worry about the delivery time, please contact with me, we
will supply door to door service.
* if you want to reduce the cost, contact with me we will supply
CO, FAT, FORM A, FORM E and other doucments.
* if you worry about the quality, please contact with me. our
factory meet ISO9001-2008 Quality management
certification system, The quality of raw materials is guaranteed
and the quality of products meets international
standards.

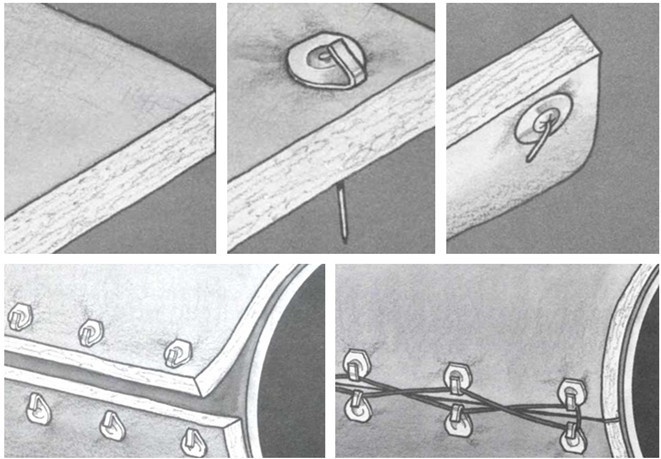

How to Install the insulation lacing hooks
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the
insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
Xiangyi Metal Products CO.,Ltd
Hebei Xiangyi Metal Product Co.,ltd manufactured the following listed insulation pins and washers
with good quality and price, if you have interest purchasing from
China, our company definitely is a
good choice for you.
| Insulation Pins | Insulation Washers |
| Perforated base insulation hangers | Self locking washers |
| Self stick insulation pins | Dome cap washers |
| Lacing anchors | Insulation clips |
| CD weld pins | Plastic insulation anchors |
| BI metallic pins | Insulation discs |
| Insulation fixing anchors | |
| J hooks | |
| Impaling clips | |
| Solar panel clips | |
