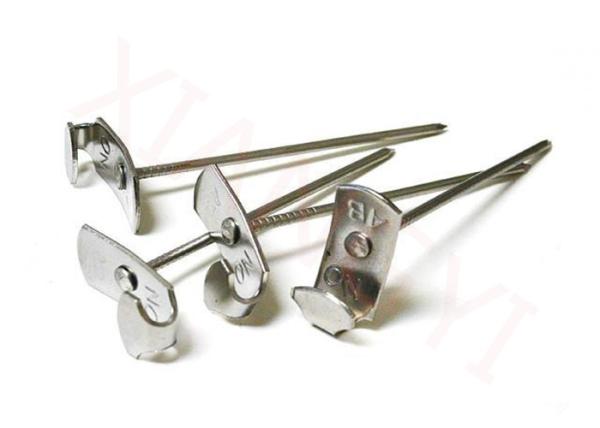

1. it's a fabricated metal anchor consisting of a pin and tabbed or hooked washer.

2. stainless steel is a popular material while this type lacing anchors is also made in mild steel.

3. stamped "no ab" to denote 'no asbestos'.

4. the tabbed head is about 1" across, and 7/16" wide.

5. The nail can be 12 gauge or 14 gauge in pin diameter.

6. 2-1/2" & 4-1/2" are standard pin length

7. Typical application is for the fabrication of lacing blankets or removable covers.

8. This type anchor is somewhat more economical than the standard lacing anchor and also serves to eliminate weight in the overall removable cover or blanket.

1) US standard
The head diameter is 1 inch,

the pin diameter is 10Ga,

the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch

2) EU standard
The head diameter is 30mm,

the pin diameter is 2.7mm,

there are many different length for EU market,

the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm

3) Australia standard
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin.

The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")
