    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft

    Ask Lasest Price
    Brand Name : XIANGYICUSTOM
    Model Number : Starlock Push On Fasteners
    Certification : ISO9001-2015
    Price : USD0.02- USD0.1/pcs
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000 pcs per hour
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft

    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft


    Quick Details Of The Starlock Push On Fasteners:


    The starlock push on fasteners are made of manganese steel and used for M3-M24 shaft.


    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft

    Name: Starlock Push On Fasteners

    Material: 65 Manganese Steel
    Surface: Black Oxide Or Zinc Plated

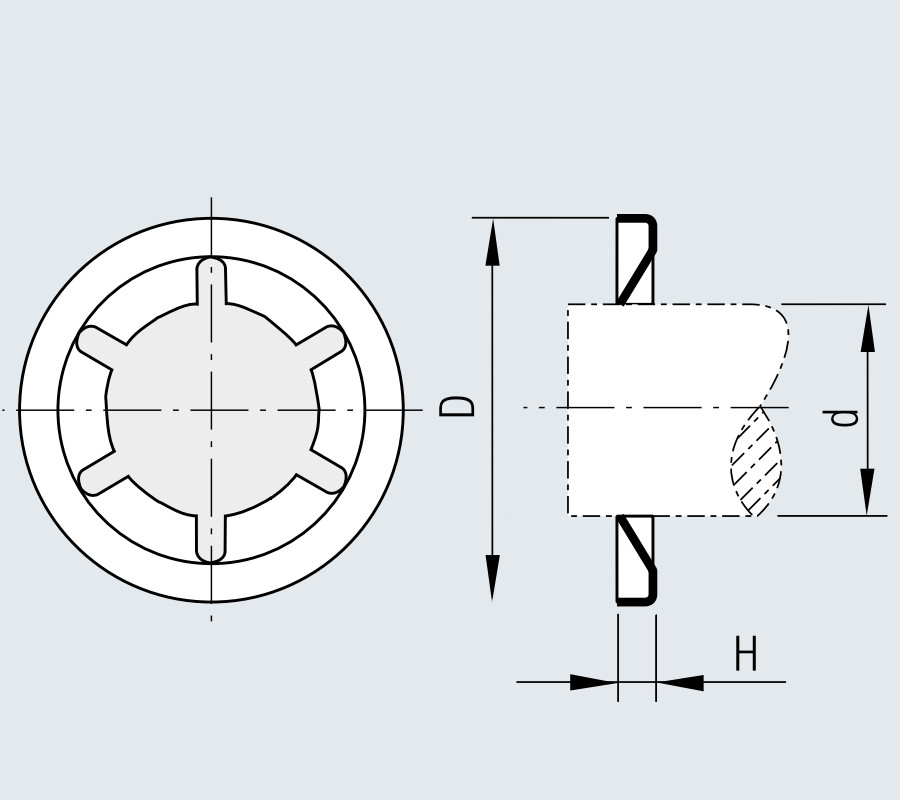

    Outside D

    Height H

    Material Thickness

    Number Of Legs

    Shaft d

    9.7mm

    1.3mm

    0.2mm

    4

    1.5mm,2mm,3mm

    11.5mm

    1.3mm

    0.2mm

    5

    4mm

    11.5mm

    1.3mm

    0.2mm

    6

    5mm

    15.3mm

    1.3mm

    0.25mm

    6

    6mm,7mm,8mm

    18.4mm

    1.9mmm

    0.3mm

    6

    9mm,10mm,11mm

    25mm

    2.3mm

    0.4mm

    6

    12mm,13mm

    28.2mm

    2.3mm

    0.4mm

    6

    14mm,15mm,16mm,17mm

    36.6mm

    3.0mm

    0.4mm

    9

    18mm,19mm,20mm,21mm,22mm

    38.1mm

    2.9mm

    0.45mm

    9

    23mm

    38.1mm

    3.2mm

    0.5mm

    9

    24mm

    41.3

    3.2mm

    0.5mm

    9

    25mm

    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft

    Name: Starlock Push On Fasteners Dome Capped

    Material Of Caps: Stainless steel

    Material Of Fasteners: 65MN manganese steel
    Fastener Surface: Black Oxide Or Zinc Plated


    Outside D

    Height H

    Shaft Penetration T max

    Number Of Legs

    Shaft d

    10.6mm

    3mm

    2.5mm

    4

    1.5mm,2mm,3mm

    12.3mm

    3.8mm

    3mm

    5

    4mm

    12.3mm

    3.8mm

    3mm

    6

    5mm

    16.1mm

    5.1mm

    4mm

    6

    6mm,7mm,8mm

    19.7mm

    5.8mm

    4.5mm

    6

    9mm,10mm,11mm

    26mm

    7.5mm

    6mm

    6

    12mm,13mm

    29.4mm

    9mm

    7mm

    6

    14mm,15mm,16mm,17mm

    38.2mm

    11.7mm

    8.7mm

    9

    18mm,19mm,20mm,21mm,22mm

    39.8mm

    13mm

    9.5mm

    9

    23mm

    43mm

    12.5mm

    9.5mm

    9

    24mm,25mm


    Detailed Images Of The Starlock Push On Fasteners Dome Capped:


    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft

    Applications Of The Starlock Push On Fasteners Dome Capped:


    Automotive

    Window installation

    Transportation

    Medical technology

    Heating systems

    Conveyor systems

    A/C and ventilation applications


    M6 Starlock Push On Fasteners Dome Capped For Metric Round Shaft
