Pre-Galvanized Carbon Steel Self Adhesive Insulation Hanger pins
For Glass Wool
Quick details Of Self Adhesive Insulation Hanger pins :
| Product Name | self adhesive insulationhanger pins |
| Base Material | carbon steel ,stainless steel ,aluminum |
| Pin material | annealing wire or aluminum |
| Base plate | 50x50mm in common ,specially can be requirement |
| Pin diameter | 2.7mm in common ,specially can be requirement |
| Pin length | 25mm-300mm |
| Accessories | self-locking washer ,self-adhesive dome cap washer |
Self Adhesive Insulation Hanger pins Product information :
Self Adhesive Insulation hanger pin is an insulation hanger with a self-stick base. When you use it,
please Just peel the release paper from the hanger base and firmly
press the base to the clean
duct-free surface. Impale the insulation over the hanger nail and
slip on the locking washer.
Self-stick hangers adhere to clean metal surfaces and withstand
high temperatures. When
using an adhesive fastener, the fastener is bonded to the duct-work
with an appropriate
adhesive and allowed to set up. After sufficient drying time the
liner is impaled on the pin
and a washer added to retain the liner.
Self Adhesive Insulation Hanger pins Specification :
| Product Name | Self Adhesive Insulation Pin |
| Band name | huihaocustom |
| Base Size | 2″ x 2″, 1-3/8″ x 1-3/8″ |
| Base Thickness | 0.4mm |
| Base Material | Galvanzied steel, Stainless Steel ,Aluminum |
| Base gasket | Double Sided PE Foam |
| Glue | Against High Temperature 90℃ |
| Pin Diameter | 12ga, 14ga |
| Pin length | 25mm-300mm |
| Pin Length In Common | 38mm;43mm;53mm;63mm,115mm, 130mm, 150mm, 164mm, 180mm, 203mm |
| Self-locking washer diameter | 38mm/40mm/50mm |
| Pin Material | Aluminum, Stainless Steel |
| Surface Treatment | Polishing, Galvanzied Plating |
| Bending | Pins are soft, easy bending over |
| Loaded Weight | 3kgs |
| Packing | 500pcs or 1000pcs |
| Sample | free |
| Advantage | good quality and low price |
| Usage | HVAC system, Air conditioning |

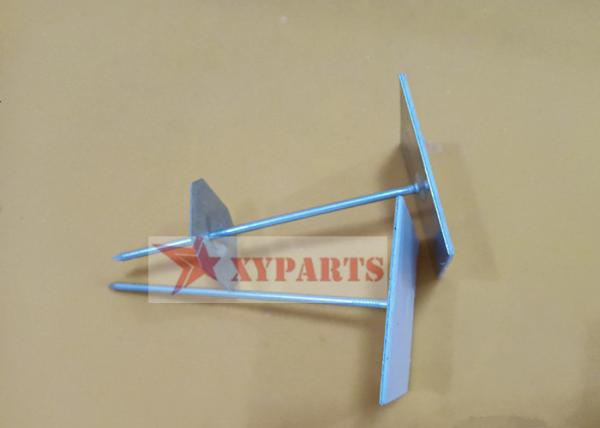

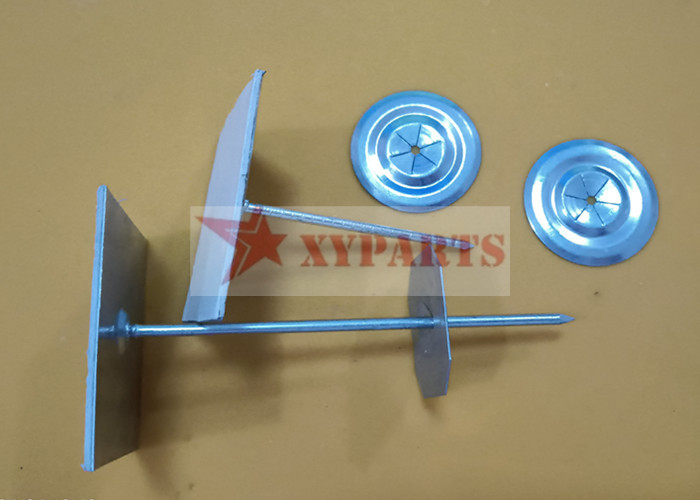

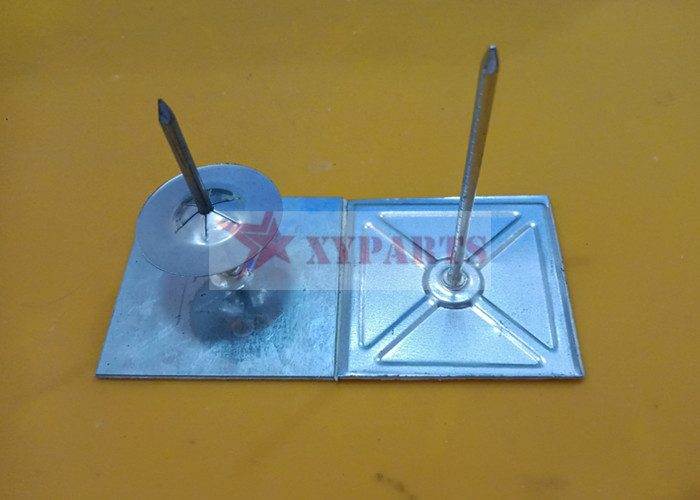

Self Adhesive Insulation Hanger pins Pic :
Advantage of Self Adhesive Insulation Hanger pins :
- It has anti-temperature sudden change, cold resistance and heat
resistance;
- High bearing capacity, high pressure bearing and good tensile
performance;
- easy to install, no special installation tools are required;
- It is not easy to deform, moisture, vibration, and good thermal
properties after loading.
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation
fasteners/insulation anchors manufacturing company, we produce all
kinds of insulation pins and washers.can make mold according your
drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
Rock Wool Adhesive Insulation Pin Buying guide :
1. choose annealing wire for the pin
soft wire is easy to bend when fixing rock wool material with self
locking washer
2.common size is 2.7mm ,3.0mm wire to make the pin
2.7mm and 3.0mm wre diamerer is standard size for insulation pin
,at the same time ,the diameter is
based on the pin length
3. the base is square hardness metal sheet
hardness metal sheet is more firmly,no-shedding ,non-deformable
