HAVC Systerm Aluminum Metal Insulation Stick Pins For Fixing Rock
Wool Borad
Aluminum Metal Insulation Stick Pins Information :
 | Square type base: 50mmx50mm / 1mm
Pin diameter: 12ga (2.7mm), 3mm in common
Pin Material: anneaded mild steel wire, anneaded stainless steel
wire for sperical orders.
Pin Finished: zinc coated, copper plating
Pin length: from 38mm to 230mm, others can be customization.
Installation parts: including round self locking washer, square
self locking washer and dome cap washers |
Aluminum Metal Insulation Stick Pins Specification :
| Self Adhesive Pins |
| Product size | Pin length: 1-1/4” - 8” |
| Pin diameter:12GA ,14GA |
| Base size : 2”*2” |
| Material | Pin: Stainless steel, Aluminum, Stainless steel |
| Base: usually galvanized steel, stainless steel ,aluminum
acceptable |
| Surface treatment | Galvanized , Polished |
| Features | Firm conjunction between pins and bases |
| Pins are soft, easy to bend |
| Excellent stickness for double-sided adhesive property |
| Length tolerance ±0.1mm |
| Packing | Packing can be customized as per requirements, current packing
information available upon request. |
| Supply capability | 10000Pcs/hour |
| Application | Fixing various insulation blankets and boards |
| Remark | Technical parameters are available upon request |

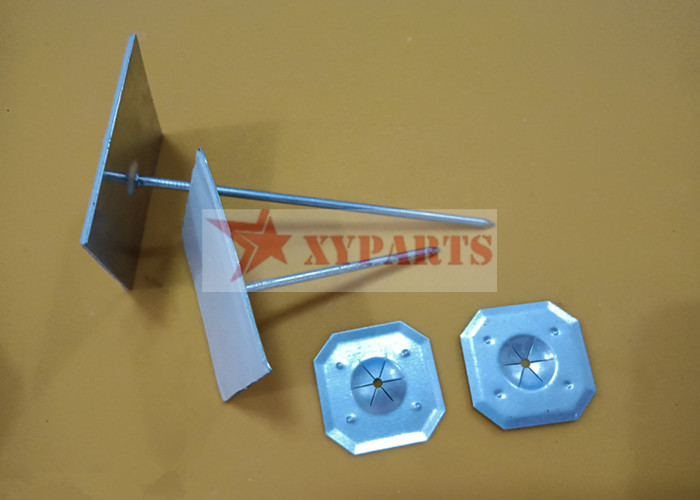

Pic Of Aluminum Metal Insulation Stick Pins:
Recommended assembly method for Aluminum Metal Insulation Stick Pins :
1. Work surfaces should be clean and dry, free of dust, grease, oil
and any other loose matter.
2. Remove the protective release paper taking care not to touch the
adhesive.
3. Place the hanger in the required position and press the base
against the surface to be insulated
4. Insulation can be impaled immediately and firmly locked with
fastening clips but maximum strength
of adherence is achieved after 24 hours.
Usage:
Exclusively used for fixing adiabatic materials in ducts of
air-conditioner, for glass-wool and rock-wool in
soundproofing works,and for the duct-lining.
Aluminum Metal Insulation Stick Pins Package :
| Product | Size(mm) | Quantity | Caton(cm) | Weight |
| Self adhesive insulation pins | 38mm | 1800 | 35×35×35CM | 16.4kgs |
| Self adhesive insulation pins | 45mm | 1500 | 35×35×35CM | 14.7kgs |
| Self adhesive insulation pins | 63mm | 1000 | 35×35×35CM | 10.8kgs |
| Self adhesive insulation pins | 114mm | 500 | 35×35×35CM | 6.6kgs |
| Self adhesive insulation pins | 203mm | 300 | 35×35×35CM | 5.1kgs |
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation
fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold
according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
