12ga Mild Steel Steel Rock Wool Fixing Insulation Hanger Nails With
Double Side Tape
Rock Wool Fixing Insulation Hanger Nails Basis Information :
Material | Self Adhesive Base | Galvanized Sheet |
| Second Generation Pin | Aluminum is soft and more easier for bending |
| Self Locking Washer | Galvanized Sheet |
Size | Self Adhesive Base | 50x50x0.35mm/ 35x35x0.35mm |
| Second Generation Pin | 2.7mm diameter, 25~115mm length |
| Self Locking Washer | 30mm ,or to be request |
Rock Wool Fixing Insulation Hanger Nails Product introduce :
Insulation pins are an essential method of fixing various types of
insulation materials. These insulation
fasteners are also called insulation nails, insulation cleats, and
in some cases, especially with industrial
insulation, these might be referred to as stud welding pins or
simply studs. Pins for insulation come in
various sizes, diameters and are manufactured from different
materials. You can also buy self-adhesive
insulation pins. It all depends on the specific application and
temperature range of the insulating medium.
Main benefits of Insulation pins:
- Easy to install
- Support insulation
- Rigid and strong
Rock Wool Fixing Insulation Hanger Nails Specification :
Rock wool fixing insulation hanger nails |
| pin diameter | tape base | pin length |
| 12 ga (.106)/ 3mm | 50mm Square | 1 |
| 12 ga (.106)/ 3mm | 50mmSquare | 1-5/8 |
| 12 ga (.106)/ 3mm | 50mm Square | 2-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 3-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 4-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 5-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 6-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 8" |
| 12 ga (.106)/ 3mm | 50mm Square | 8-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 9-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 10-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 12" |

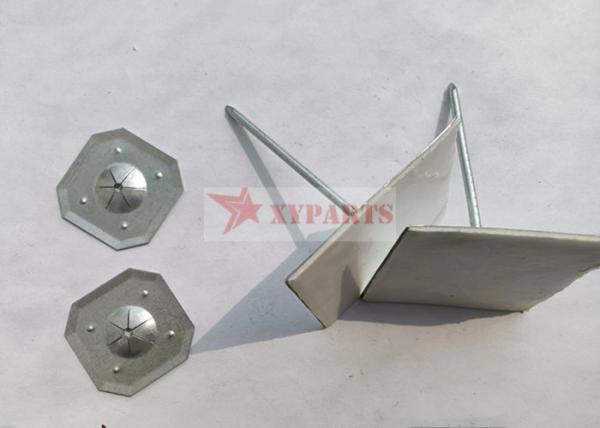

Rock Wool Fixing Insulation Hanger Nails Pic :
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation
fasteners/insulation anchors manufacturing company, we produce all
kinds of insulation pins and washers.can make mold according your
drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
Rock Wool Fixing Insulation Hanger Nails Buying guide :
1. choose annealing wire for the pin
soft wire is easy to bend when fixing rock wool material with self
locking washer
2.common size is 2.7mm ,3.0mm wire to make the pin
2.7mm and 3.0mm wre diamerer is standard size for insulation pin
,at the same time ,the diameter is
based on the pin length
3. the base is square hardness metal sheet
hardness metal sheet is more firmly,no-shedding ,non-deformable
