Corrosion Resistance Stainless Steel Chain Braided Ring Mesh For
Light Partitioning
Quick Details Of Stainless Steel Chain Braided Ring Mesh :
| Material | stainless steel , copper, brass, other materials on requirements. |
| Wire diameter | 0.5 mm – 2.0 mm. |
| Ring diameter | 3.8 mm – 24 mm. |
| Surface Finish | Decorative plating, Physical Vapor Deposition, US10B and US10A
Finish, Powder Coating, Passivation, etc. |
| Color | Silver, black, green, blue, red, purple, golden, copper, bronze and
many other colors. |
| Note: material, size and colors can be customized by requirements. |
Stainless Steel Chain Braided Ring Mesh Specification:
| Part No. | TYPE | MATERIAL | WIRE DIAMETER | OUTER DIAMETER | WEIGHT/M2 |
| HH-SS-053 | WELD | Stainless steel | 0.53MM | 3.81MM | 3.2kgs |
| HH-SS-080 | WELD | Stainless steel | 0.80MM | 7.00MM | 2.8kgs |
| HH-SS-100 | NON-WELDING | Stainless steel | 1.00MM | 8.00MM | 4.7kgs |
| HH-MS-100 | NON-WELDING | Mild steel | 1.00MM | 8.00MM | 4.6kgs |
| HH-SS-120 | NON-WELDING | Stainless steel | 1.20MM | 10.00MM | 4.8kgs |
| HH-CO-120 | NON-WELDING | Copper / brass | 1.20MM | 10.00MM | 5.5kgs |
| HH-SS-150 | WELD | Stainless steel | 1.5MM | 15.00MM | 4.8kgs |
| HH-SS-150 | NON-WELDING | Stainless steel | 1.5MM | 15.00MM | 4.8kgs |
| HH-CO-150 | WELD | Copper / brass | 1.5MM | 15.00MM | 5.5kgs |
| HH-CO-150 | NON-WELDING | Copper / brass | 1.5MM | 15.00MM | 5.5kgs |
| HH-SS-200 | WELD | Stainless steel | 2.0MM | 20.00MM | 6.8kgs |
| HH-SS-200 | NON-WELDING | Stainless steel | 2.0MM | 20.00MM | 6.8kgs |
| HH-CO-200 | WELD | Copper / brass | 2.0MM | 20.00MM | 7.8kgs |
Stainless Steel Chain Braided Ring Mesh Feature:
 |  |
Advantage
1.Wonderful corrosion resistance
2.Concise and generous, has strong modern sense
3.High strength ,strong and durable
4.Convenient for packing and trasperation
5.With high flexible ,easy to install
6.Easy to maintain ,and low maintenance costs | Use
They can be used for building facades partionss ,suspended ceiling
,sunshades,balconies and corridors ,column surface decoration
,,rolling curtains,stairways and hotels ,offices ,exhibition halls
,shops and other high-end interior decoration |

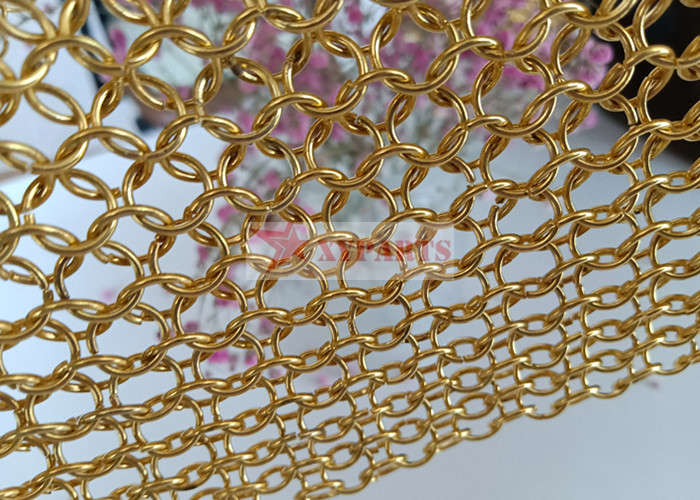

Pic Of Stainless Steel Chain Braided Ring Mesh :

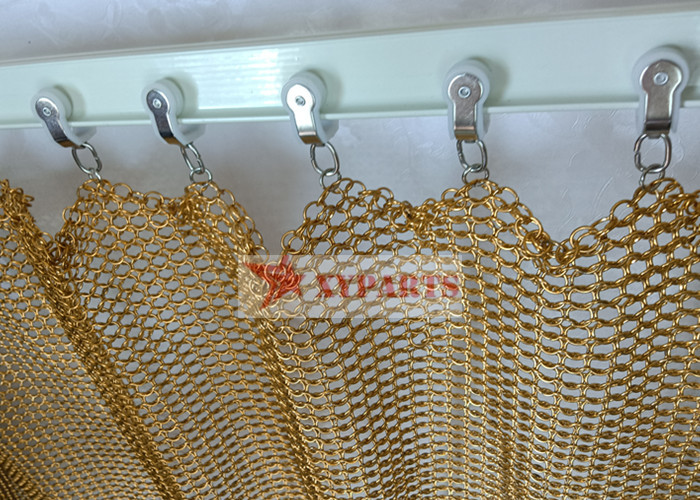

Installation Of Stainless Steel Chain Braided Ring Mesh :
We have three different installation ways: U track, H track
installation and stainless steel curtain rod installation.
H track can be applied as rippled strips to appear the effect of
fluency. Because of high flexibility, it's easy to
be bent into any shape or angle in order to conform to installation
position condition which you need to install
with copper or brass mesh coil curtain.
U track is a straight structure. It's difficult to bend because of
exceptional structural design and high-quality
control. U track can provide a good visual hang feeling for your
copper and brass mesh coil curtain. If you need
and desire an aesthetic appearance, U track will be a good
choice.Stainless steel curtain rod is is easy for installing
with copper and brass mesh coil curtain on it. You can use shorter
time to compete installation.
H track, U track are made from aluminum materials. Stainless steel
curtain rod material conforms to AISI 316
materials group. These three installation ways can provide ideal
solutions with excellent stability, strength and
flexibility for you.
Application Of Stainless Steel Chain Braided Ring Mesh :
Chain Brain Ring Mesh has good tensile and load-bearing capacity,
beautiful and luxurious decorative
effect. The products are mostly used in exhibition halls, hotels,
screen partitions for luxury living rooms,
high-grade office buildings, luxury ballrooms, business halls,
shopping malls, sports centers, etc.
Decoration, the roof of the characteristic building, walls, stairs,
railings, etc., have a good decorative
effect, but also play a certain protective role.
Interior and exterior decoration of curtains, ceilings, stairs,
elevators, luxurious living rooms, high-rise
office buildings, hotels, luxury dance halls, business halls, etc.
for high-rise buildings, with splendid
lighting and elegant elegance
