Stainless Steel Chain Braided Ring Mesh With Welded And Non-Welded
Ring Type
Quick Detail Of Chain Braided Ring Mesh:
We provide two ring connection methods: non-welded and welded.
Material:mainly are pure stainless steel 304/316 ,it has excellent
durability, gloss, and higher fire rating.
Non-ferrous metal material : copper, bronze, brass, etc.
The purpose is that they have a natural metallic color to create a
high-end appearance.
Stainless Steel (The most cost-effective and most commonly used
option).
Carbon Steel (There is a big gap between performance and stainless
steel, but the cost is the lowest).
Copper, Brass, Bronze (High-end appearance color option).
Chain Braided Ring Mesh Specification :
Welded Type :
*****************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-053 | Weld | stainless steel | 0.53mm | 3.81mm | 3.2kgs |
| XY-SS-080 | Weld | stainless steel | 0.80mm | 7.00mm | 2.8kgs |
| XY-SS-150 | Weld | stainless steel | 1.50mm | 15.00mm | 4.8kgs |
| XY-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
| XY-SS-200 | Weld | stainless steel | 2.0mm | 20.00mm | 6.8kgs |
| XY-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
Non-Welded Type :
******************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
| XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
| XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
| XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
| XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
| XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
| XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
| XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |
Chain Braided Ring Mesh Type:
We provide two ring connection methods, non-welded and welded.
Because they are all pure hand
stitching processes, the cost difference between the two methods is
large.
Non-welded ring | Welded ring |
Non-welded connection method with lower cost can meet most needs,it
is used ceiling drapery, window curtain and room dividers,chain
mail scrubber , because no welded ring mesh is cheaper than welded
ring mesh, but it is enough strong for drapery, Not easy to break,
easy to make a variety of different shapes | Welded ring connection makes mesh structure is stronger and can
bear higher weight without cracking, and the manual cost is
higher.it is mainly suit for anti-cut gloves and anti-cut cloth and
caps. some specifical material ring is used in the military field,
with bulletproof and shielding functions. sometimes also used for
decoration |

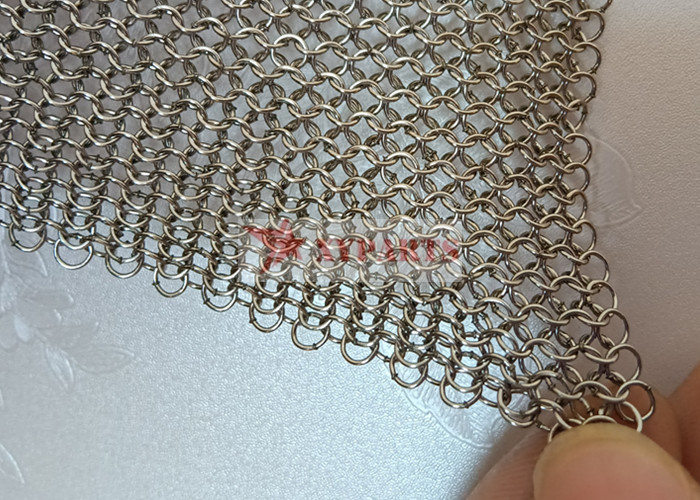

Pic of Chain Braided Ring Mesh:
Application Of Chain Braided Ring Mesh :
Architectural ring mesh is a new decorative material in the modern
architectural design. Its special metal
luster and shimmering create a unique environment.
In architectural design, architectural ring mesh satisfies both
functional and aesthetic functions. Therefor
it is especially suitable for interior design and decoration.
Function: room dividers, ceiling decoration, wall decoration, door curtain,
window screen, rolling shutters,
shower curtain, fireplace screen, light partitioning, balustrades,
shop exhibition stands, building facade,
column cladding, craft projects, sun protection, etc.
Application place: balcony, corridor, elevator, hotel, restaurant, office, building,
grand ballroom, museum,
concert halls, dining hall, exhibition halls, shopping mall,
airport access, theater, etc.
XiangYi Company Advantages:
1.pattern design support according to the application
2.frame design support according to the installation
3.surface treatment support ,inclode to the installation
4.supply install accessories ,include PVDF,PVD Spraying
5.Material:stainless steel ,copper ,bronze ,brass ,aluminum
,aluminum alloy ,ect
6.Weave type :Plain weave,twill weave ,dutch weave ,plain dutch
weave ,twill weave ,uinque woven method,ect
7.ISO9001-2008 Quality certification management system
