Fire Prevention Stainless Steel Ring Mesh Drapery Used As
Decorative Metal Curtain
Quickly Details Of Ring Mesh Drapery :
1.Material :stainless steel ,brass wire ,copper wire and low carbon
steel wire
2.Wire diameter: 0.53mm - 3mm, standard is 1.2mm or 1.0mm
3.Outer diameter:3.8mm - 30mm, standard is 10mm or 8mm
4.Surface treatment : Nickel Plated with silver or gold colors or
by polishing treatment
Application:widely used as isolation wall, window screen,room
dividers, and also more other usage are
designed in the interior decoration.
Ring Mesh Drapery Specification :
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-053 | Weld | stainless steel | 0.53mm | 3.81mm | 3.2kgs |
| XY-SS-080 | Weld | stainless steel | 0.80mm | 7.00mm | 2.8kgs |
| XY-SS-150 | Weld | stainless steel | 1.50mm | 15.00mm | 4.8kgs |
| XY-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
| XY-SS-200 | Weld | stainless steel | 2.0mm | 20.00mm | 6.8kgs |
| XY-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
| XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
| XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
| XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
| XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
| XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
| XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
| XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
| XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |

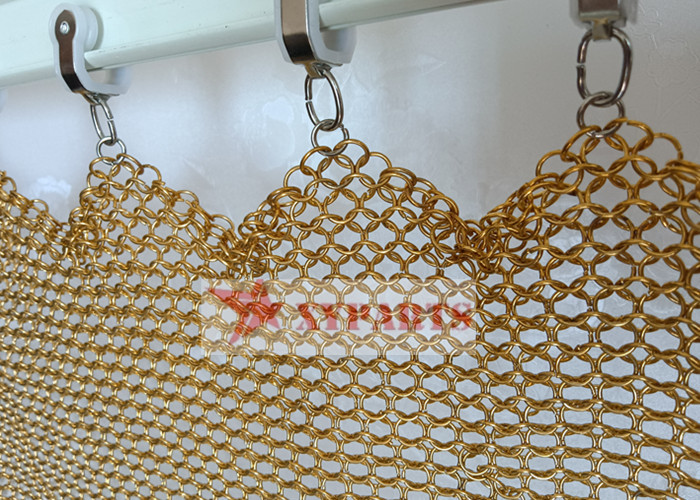

Ring Mesh Drapery Pic :
Ring Mesh Drapery Feature :
| Beautiful appearance | create a visually decorative effect |
| Mildew proof | also suitable for humidity environment |
| Fire prevention | metal round ring mesh is nonflammable |
| Easy maintenance | just use a piece of cloth to wipe |
| Rust resistance | no fade and good durability |
| Easy installation | lightweight and flexible structure |
| Ventilation and light transmission | keep fresh air and enhance lighting |
| Various colors and sizes | can be used in different applications |
| Unique design and style | satisfy the demand of high end customers |
Ring Mesh Drapery Application :
Space divider.
• Wall decoration. • Ceiling decoration. • Window curtain.
• Handrail balustrade. • Elevator cab mesh Facade cladding. • Glass laminated wire. • Sunshade screen. • Security door.
• elevator cabins screen. • Floor covering fabrics |
Wire mesh facades.
• Shade screens. • Architecture ceilings. • Metal draperies for
walls.
• Partition and isolation screens. • Staircases isolation screen. |
Function : room dividers ,ceiling decoration ,wall decoration ,door
curtain, window screen ,rolling shutters ,shower curtain ,fireplace
screen ,light portioning , balustrades , shop exhibition stands
,building façade ,column cladding ,craft projects ,sun protection ,
ect Application place :balcony ,corridor ,elevator,hotel,restaurant
,office ,building ,grad ballroom,museum ,concert halls ,dining hall
,exhibition halls ,shopping |
XiangYi Company Advantages :
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track,
bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum,
aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch
weave, twill dutch weave, unique woven
method, etc.
7.ISO9001-2008 Quality certification management system
Function : room dividers ,ceiling decoration ,wall decoration ,door
curtain, window screen ,rolling shutters ,shower curtain ,fireplace
screen ,light portioning , balustrades , shop exhibition stands
,building façade ,column cladding ,craft projects ,sun protection ,
ect
Application place :balcony ,corridor ,elevator,hotel,restaurant
,office ,building ,grad ballroom,museum ,concert halls ,dining hall
,exhibition halls ,shopping
