3.4mm Galvanized Steel Capacitor Discharge Insulation Welding Pins
For Exhaust Air Duct
Quick Details Of The 3.4mm Capacitor Discharge Insulation Welding
Pins
3.4mm dia Capacitor Discharge Insulation Welding Pins are widely
used for the exhaust air duct.
The pins simplify the installation of "Duct Liner" or other
insulation materials to duct work or to
other heating, ventilating or air conditioning sheet metal
configurations and housings.
Capacitor Discharge Insulation Welding Pins are widely accepted as
labor saving fasteners in
the thermal and acoustical insulation markets for use in industrial
and commercial applications.
 | Head Material: Low carbon steel or stainless steel Head Surface Finish: galvanized is standard Head Edge: Beveled edge washer to prevent cutting of insulation material. Flat edge washer style also standard. Head Diameter (WD): 1" (25mm) Pin Material: Low carbon steel or stainless steel Pin Surface Finish: galvanized is standard, copper plating is available upon special
request. Pin Diameter (D): 0.135" (3.4mm) Pin Length (L): As your request |
 |
Specifications Of The Capacitor Discharge Insulation Welding Pins
Item | Capacitor Discharge Insulation Welding Pins | Brand | HUIHAO Costom | Material | Mild steel | Plating | Standard is Galvanized |
Standard Washer is Galvanized | Copper Plating is available | Bevel | Washer edge is beveled to prevent cutting of insulation material | Stainless steel | Not standard, but available by special order | Head with paper | Available, for welding through aluminum foil faced insulation
materials | Pin with tubes | Available, for welding through tin foil faced insulation materials | Head Size | 1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm) | Head Thickness | 0.5mm or 0.4mm | Pin Diameter | 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm) | Pin Length | as your request | | Package | 1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet 3. or according to your requirement. |
|
 |

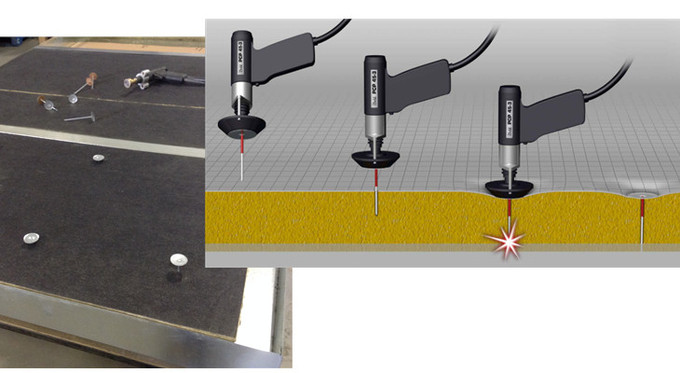

Installation Introduction Of The Capacitor Discharge Insulation Welding Pins
 |
| Recommended for | Pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
FAQ Of Xiangyi Metal Product Co.,Ltd
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the
length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality
Management System" standard.
4) We will send you videos and pictures during the production and
shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the
on-time delivery.
3) Excellent quality: we have rich experience, our products are in
line with international standard.
4) Good after-sale service: we offer good after-sale service for
each order.
