50mm Round Perforated Base Insulation Anchor Pins With Self Locking Washers

Ask Lasest Price
Brand Name :	HUIHAOCUSTOM
Model Number :	insulation anchor pins
Certification :	ISO9001-2015
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	400000 sets per 30 days
Delivery Time :	7 work days

Add to Cart

Product Details
Company Profile

50mm Round Perforated Base Insulation Anchor Pins With Self Locking Washers

Quick details of the 50mm round perforated base insulation anchor pins

Our perforated base insulation anchor pins are designed to fix efficiently insulation on

irregular surface (concrete, wood, etc.). In order to meet all requirements, we supply a wide

range of lengths.

Perforated base insulation anchor pins is consist of a galvanised steel nail

(copper/aluminium on request) firmly mounted on a perforated galvanised steel base.
Our galvanised spring steel fastening clips ( self locking washers) are supplied with the

insulation anchor pins, which ensure a perfect upholding of the insulation.

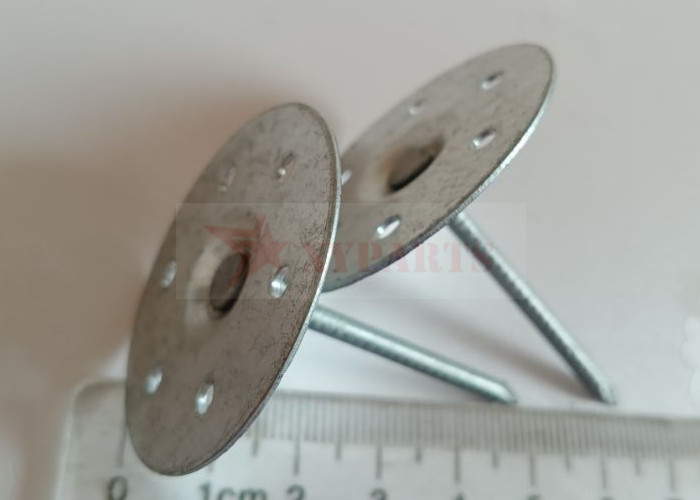

Name: 50mm Round Perforated Base Insulation Anchor Pins

Factory: Xiangyi Parts

Base Material: galvanized steel

Base Size: 40mm

Base Thickness: 0.4mm

Pin Diameter: 2.7mm

Pin Length: 50mm

Self locking washers: 30mm, 32mm, 38mm

50mm Round Perforated Base Insulation Anchor Pins With Self Locking Washers

Specification details of the perforated base insulation anchor pins

Material available

Pin material

-mild steel: must be annealed treatment, easy

for bend; zinc coated/copper plated finished

for anti-rust

-aluminum 1100 grade

-annealed stainless steel for specification

Base

Galvanized steel, stainless steel

Common Size Details
pin diameter	perforated base	pin length
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	25mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	40mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	50mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	63mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	90mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	114mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	140mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	165mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	200mm
2.5mm, 2.7mm, 3.0mm, 3.4mm	25mm/ 40mm /50mm Square or Round	230mm

Self locking washers for the perforated insulation anchor pins

Name: Round self locking washers
Material: carbon steel or stainless steel

Thickness: 0.4mm, 0.5mm, 0.6mm

Diameter: 25mm, 30mm, 38mm, 50mm

Name: Square self locking washers
Material: carbon steel or stainless steel

Thickness: 0.4mm, 0.5mm, 0.6mm

Diameter: 28x32mm, 38mm, 63.5mm

Name: Dome Cap Washers
Material: carbon steel or stainless steel

Thickness: 0.4mm, 0.5mm, 0.6mm

Diameter: 22mm, 28mm, 30mm, 38mm, 40mm, 50mm

Applications of the perforated insulation anchor pins

1. Install at ambient temperatures above +10° C on clean surfaces

2. Apply adequate adhesive to the underside of the hanger

3. Position the insulation anchor pins and press it until the adhesive seeps through perforations

4. After 5 minutes, the strength of adherence is sufficient for impaling the insulation on the insulation anchor pins. Maximum strength of adherence is achieved after 24 hours

5. Secure with self locking washers.

6. If necessary cover the pin with a protective nylon cap

Package of the insulation anchor pins

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM

HEBEI XIANGYI METAL PRODUCT CO.,LTD

1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using
drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.),
or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management.
