50mm Stainless Steel Perforated Insulation Fixing Pins Used For Attaching Insulation Materials

Quick details of the 50mm stainless steel perforated insulation fixing pins

Name: 50mm Stainless Steel Perforated Insulation Fixing Pins Used For Attaching Insulation Materials Factory: Xiangyi Parts Base Material: stainless steel Base Size: 50x50mm Base Thickness: 0.4mm Pin Diameter: 2.7mm Pin Length: 50mm Self locking washers: 30mm

Specification details of the perforated insulation fixing pins

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm

Surface treatment: zinc coated or copper coated for mild steel material

Applications of the perforated insulation fixing pins

	1. Wipe surface clean Perforated insulation hangers must be applied to a clean, dry, non-painted surface.
	2. Apply adhesive to the bottom of the perforated insulation hangers Spread adhesive onto the perforated base with a putty knife.

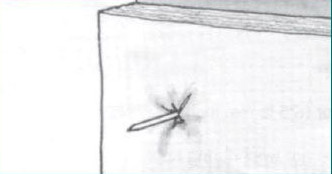

	3. immediately stick the insulation hangers in place. Press the hangers into position with a twisting motion to assure an even spread of adhesive. The adhesive should protrude through the performation & beyond the edges of base.
	4. Install Insulation Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours.
	5. Secure with washers Secure insulation in place with a self locking washer and then bend over or clip off the pin

Package of the perforated insulation fixing pins

PIN LENGTH	CARTON SIZE	QTY/CARTON
38MM	41CMX28CMX17CM	1000PCS
50MM-65MM	41CMX28CMX17CM	500PCS
70MM-84MM	30CMX28CMX29CM	500PCS
90MM-120MM	30CMX30CMX30CM	500PCS
130MM-160MM	30CMX30CMX35CM	500PCS
170MM-203MM	30CMX30CMX28CM	250PCS
OTHERS	SUPPORT CUSTOM

FAQ Of Xiangyi Metal Products CO.,Ltd.

1. Are you manufacture or trader?

• We are the manufacture and we sell what we make.

2. Do you support product customization?

• Yes, the material, the size, all could be customizied according to your request.

3. Can you accept small order?

• Yes, for common size, we could accept small orders.

4. Can i get samples?

• Yes, for common size, samples for quality confirm is supported in our company.

5. What is your advantages?

• Competitive price: we sale what we manufacture.
• Excellent quality: we have rich experience, our products are in line with international standard.
• Good after-sale service: we offer good after-sale service for each order.
• Our products are consist in price, quality and delivery service.

HEBEI XIANGYI METAL PRODUCTS CO.,LTD

Main Production-Metal Ring Mesh, Chainmail Scrubber, Metal Mesh Curtain, Instulation Fasteners, Solar panel Clips

• Pattern Design services

• Frame Design services

• Installation System Design Services

• Install parts Services

• Surface Treatment Services
