    3mm Wire Dia Steel 4.8 Cd Weld Stud Inulation Pins With Copper Plated

    Ask Lasest Price
    Brand Name : XIANGYI
    Model Number : CD Weld Stud Inulation Pins
    Certification : ISO9001-2015
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000 PCS per week
    Delivery Time : within 15 days after confirm the order
    • Product Details
    • Company Profile

    3mm Wire Dia Steel 4.8 Cd Weld Stud Inulation Pins With Copper Plated

    3mm Wire Dia Steel 4.8 CD Weld Stud Inulation Pins With Copper Plated



    Quick Details Of CD Weld Stud Inulation Pins :


    • Product Name :CD Weld Stud Insulation Pins
    • material treatment : anneaded mild steel wire , anneaded stainless steel wire, copper wire is for specifical order
    • diameter of weld pins: 3.0mm , 2.7 mm are in common size ,other size can be customed
    • Pin length: the min length is 10mm, the longest can be 370mm
    • Surface treatment : copper plated , zinc coated for MS material, polished for SS material.
    • Application: fixing insulation material on board for marine
    • Features: easy welding, easy bending, best finished, long left time

    CD Weld Stud Inulation Pins Specification :


    10 Ga. (0.135") CD Weld Stud Inulation Pins

    MaterialMild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter10 Ga. (0.135")
    Length1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9"

    12 Ga. (0.105") Capacitor Discharge ( CD ) Welding Pins

    MaterialMild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter12 Ga. (0.105")
    Length3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8"

    14 Ga, 2mm (0.080") CD Weld Stud Inulation Pins

    MaterialMild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter14 Ga, 2mm (0.080")
    Length3/4" 1" 1-1/2" 2" 2-1/2" 3"

    3mm CD Weld Stud Inulation Pins

    MaterialMild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter3mm
    Length25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm

    4 mm CD Weld Stud Inulation Pins

    MaterialMild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter4mm
    Length30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm ,240mm,270mm,370mm ect

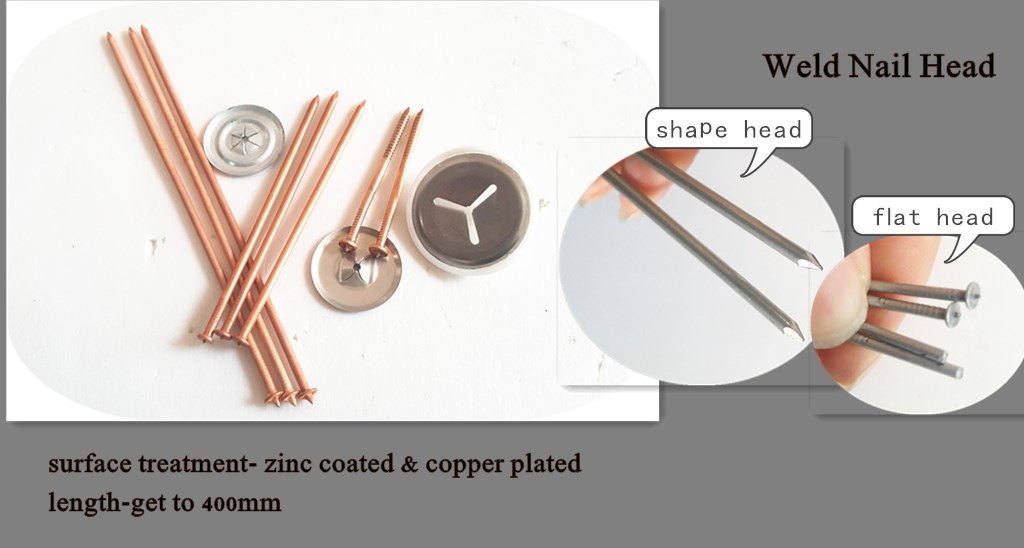

    Pic Of CD Weld Stud Inulation Pins:


    3mm Wire Dia Steel 4.8 Cd Weld Stud Inulation Pins With Copper Plated

    3mm Wire Dia Steel 4.8 Cd Weld Stud Inulation Pins With Copper Plated


    Featurer Of CD Weld Stud Inulation Pins :


    Features of CD Weld Stud Insulation Pins

    BETTER PLATING

    weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.

    REDUCED DOWN TIME

    Consistent point quality reduces frequency of machine adjustments.

    STRONGER WELDS

    Hardened steel point assures positive electrical contact for complete sheet to pin fusion.

    CORROSION RESISTANCE

    Plating exceeds current SMACNA standards for corrosion resistance.

    TEMPERATURE RANGE

    CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.

    VIBRATIONS

    CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.


    Application Of CD Weld Stud Inulation Pins:


    thermal power station with incineration plants
    industrial furnaces,chemical and petrochemical industries
    optimum fastening of fire-resistant insulation with special pin and clips
    for outstanding protection of steel structures
    against high temperature(up to 1250 ℃) and corrosion
    fixing parts of the cd weld pins
    the pins could be fixed with round self locking washers,square self locking washers ,dome cap washers

    3mm Wire Dia Steel 4.8 Cd Weld Stud Inulation Pins With Copper Plated


    Our Service:


    Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing

    company,we produce all kinds of insulation pins and washers.can make mold according your drawing

    pic ,Our products is as following :
    CD weld pins Lacing Anchors
    bimetallic pin Cup head weld pins
    Quilting pins perforated base pins
    self adhesive pins aluminum solar panel mesh clip
    all kinds of self locking washers, Dome caps.
