14 Ga 304 s/s Round Head Lacing Anchors With Strong Big Head On
Nail And Thick Plate For Head
Quick Details Of Round Head Lacing Anchors With Strong Big Head
Round head lacing anchors are used in the fabrication of insulation
blankets or removable
covers/pads, it's excellent for high temperature in both exterior and interior
applications.
Item: Round Head Lacing Anchors With Strong Big Head On Nail And Thick
Plate For Head Manufacture: Xiangyi Parts Material: Stainless Steel Head Thickness: 1.3mm Head Diameter: 22mm Hook Size: 5x11mm Hook Thickness: 1.3mm Pin Diameter: 2.0mm (14ga) Pin Length: 63.5mm (2.5")
|
 |
Specifications Of The Round Head Stainless Steel Lacing Anchors:
1. The stainless steel lacing anchor is a fabricated metal anchor
consisting of a nail and round
base hook.
2. The 304 stainless steel is the most popular material for
manufacturing the lacing anchors.
3. The stainless steel lacing anchors are stamped with NO AB on
round base head, which
means NO asbestos.
4. Typical application is for fabrication of reusable& removable
blankets or insulation covers.
5. After the lacing anchors is pushed through the insulation
blanket, lacing two sides of the
finished insulation blankets so that they are fixed together.
| Origin | Hebei, China |
| Factory | Xiangyi Metal Products Co.,Ltd |
| Name | Stainless Steel Round Head Lacing Anchors |
| Material | annealed stainless steel |
| Head | With one hole or two holes / one side is stamped with "A" "B" |
| Head Type | round or rectangle |
| Head Size | 22mm, 30mm, |
| Head Thickness | 1mm, 1.3mm |
| Hook Size | 5mmx11mm or 5mmx15mm |
| Pin Diameter | 2mm, 2.2mm, 2.7mm etc. |
| Pin Length | 63.5mm, 114mm etc. |
| Self-locking Washer Size | 25mm, 30mm, 38mm etc. |
| Self-locking Washer Thickness | 0.4mm etc. |
| Self-locking Washer Material | galvanized steel or stainless steel |
 |
Related Products Of The Round Head Stainless Steel Lacing Anchors
Common Size Of The Square Head Lacing Anchors:
| Nail Diameter | Nail Length | Head Wide | Head Length | | 2.0mm | 63.5mm | 11mm | 25mm | | 2.0mm | 114mm | 11mm | 25mm | | 2.7mm | 63.5mm | 11mm | 25mm | | 2.7mm | 114mm | 11mm | 25mm |
|

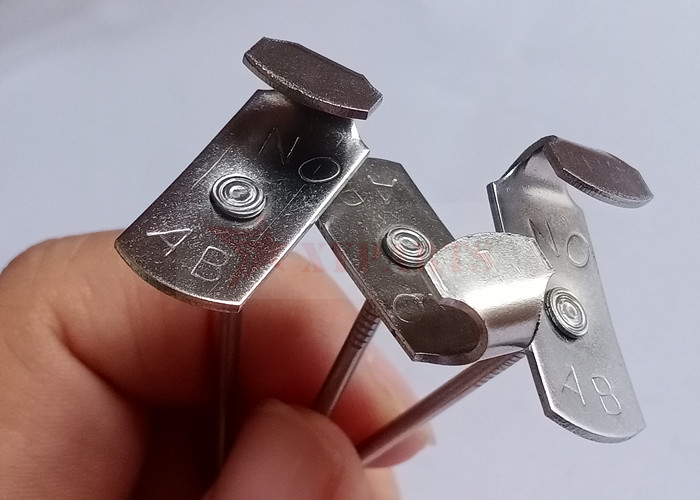

1. stainless steel is a popular material while this square head
lacing anchors is also made in mild steel. 2. stamped "no ab" to denote 'no asbestos'. 3. the tabbed head is about 1" (25mm)across, and 7/16" (11mm) wide. 4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) in pin
diameter. 5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length 6. Typical application is for the fabrication of lacing blankets or
removable covers. 7. This square head lacing anchor is somewhat more economical than
the standard lacing anchor and also serves to eliminate weight in
the overall removable cover or blanket.
|
 |  |
