1'' SS Lacing Washers With Double Hole To Wrap Insulation Around
Irregular Shape
Details of the 1'' SS Lacing Washers
The lacing washers is designed to be used with lacing wire to wrap insulation around
irregular shape.
- Name: Metal washers ,lacing washer, connecting lacing anchors
- Material: stainless steel 304,316
- standard size: 25mm
- Thickness 0.8mm-1mm thickness hardnessn stainless steel material
- Hole size :5mm
- Lacing washers with two holes

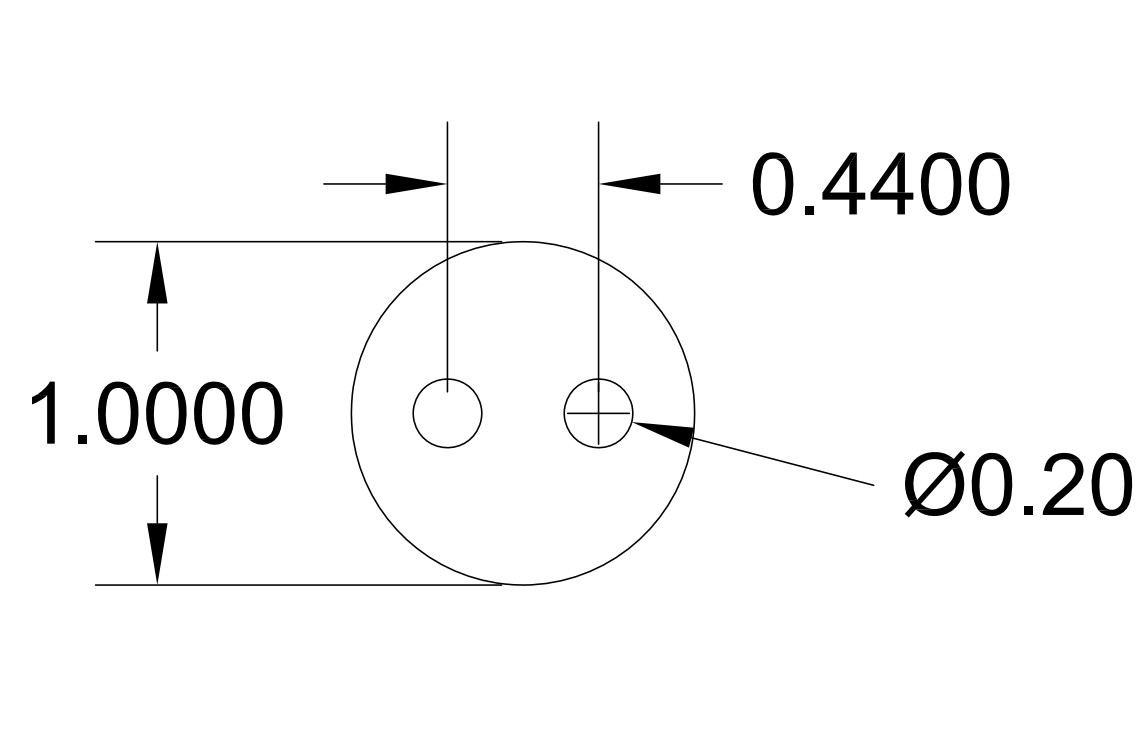

Drawing of the 1'' lacing washers |  |
Material | Sheet thickness | size | hole size |
| SS304,316 | 1mm or customized | 25mm | 5mm(0.2'') |
| Lacing Washers with Double -Hole Washer System provides an even
lower cost and the same easy-to-lace design. The tie wire
application provides more blanket flexibility with equally secure
performance. It is similar in function and appearance to the Lacing
Anchors. The Lacing washers is stocked in mild steel, cadmium
plated and stainless steel. Lacing washers are stamped "NO AB" to
indicate no asbestos at no additional cost. |
| Lacing washers used for |
- Actuators
- Controls
- Insulation Blankets
- Lacing blanket,
- removable cover, insulating applications.
- Enclosures
- Pipes
- Pipe Components
- unnel Dumper Actuator
- wrap insulation around irregular shape.
|
| Related parts | Lacing hangers, speed clips /self locking washers , Lacing rings |
*****************************************************************************************************************************
Images details of the 1'' Lacing washers
****************************************************************************************************************************************************************
Applications and advantages of the 1'' lacing hooks
The lacing washer, or lacing anchor washer, as supplied by Stud
Welding is usually used in conjunction with lacing anchors for
lacing blanket, or removable cover, insulating applications. This
speed clip, or insulation washer, holds insulation and fabrics
together in blanket fabrications for various applications where
removable covers are desired.
*********************************************************************************************************************************************
Packing methods of the Lacing Washers
Pack in common: 500pcs or 1000pcs in common , then put into carton
Also could be packed according to customer's requirements.
*****************************************************************************************************************************
