2-Holes Lacing Washers With Lacing Hangers For Insulation
Application
Quick details of the 2-Holes Lacing Washers
- Name: 2-Holes lacing wahsers , doubles holes lacing washers , metal
washers
- Material: stainless steel 304,316, Galvanized steel
- standard size: 1''
- Thickness: 0.7-1.0mm , the thickness could be customized
- Hole size :5mm
- Lacing washers with two holes
2-Holes Lacing Washers or lacing anchor washer, as supplied by XiangYi company, Which
usually used in conjunction with lacing anchors for lacing blanket,
or removable cover, insulating applications. This speed clip, or
insulation washer, holds insulation and fabrics together in blanket
fabrications for various applications where removable covers are
desired.

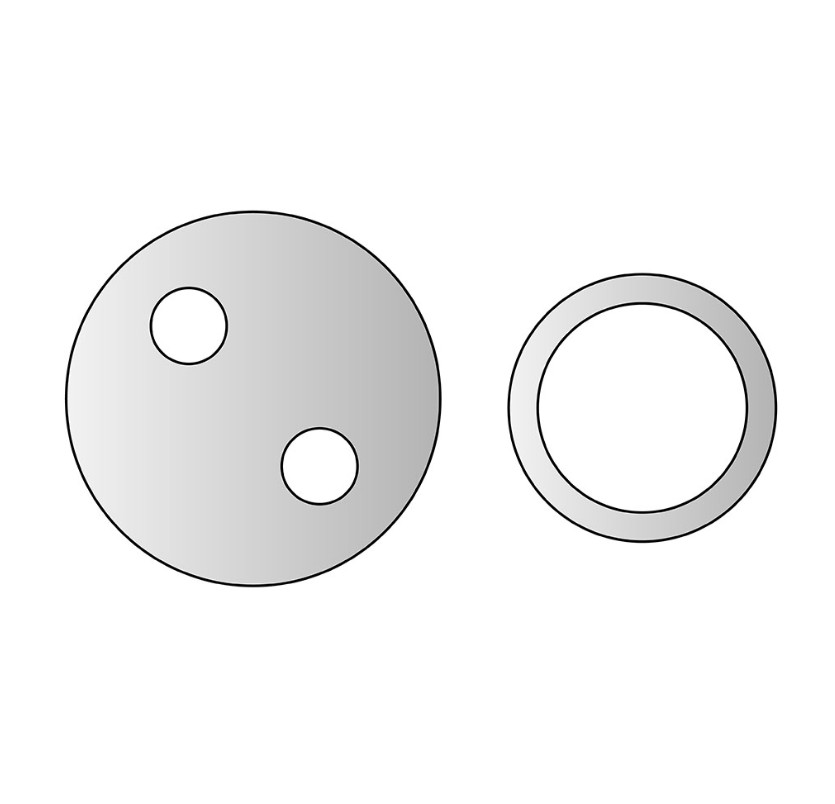

Drawing of 25mm Lacinig Washers |  |
Material | Sheet thickness | size | hole size |
| SS304,316,mild steel | 0.8-1.0mm | 1'' | 5mm(0.2'') |
| Lacing washers used for insulating applications | It could be used the following area - Actuators
- Controls
- Insulation Blankets
- Lacing blanket,
- removable cover,
- Pipe Components
- unnel Dumper Actuator
- wrap insulation around irregular shape.
|
| Related parts | Lacing hangers, speed clips /self locking washers , Lacing rings,
just see the following p[hotos |
 |
*****************************************************************************************************************************
Photos of the 2-Holes Lacing Washers
****************************************************************************************************************************************************************
Applications and advantages of the 2-Holes Lacing Washers
The lacing washer, or lacing anchor washer, as supplied by Stud
Welding is usually used in conjunction with lacing anchors for
lacing blanket, or removable cover, insulating applications. This
speed clip, or insulation washer, holds insulation and fabrics
together in blanket fabrications for various applications where
removable covers are desired.
*********************************************************************************************************************************************
Packing methods of the2-Holes Lacing Washers
Pack in common: 500pcs or 1000pcs in common , then put into carton
Also could be packed according to customer's requirements.
*****************************************************************************************************************************
XIANGYI METAL PRODUCT CO., LTD
XIXANGYI products including : CD weld studs /pins , Bimetallic pins, Rovits ,Perforated base insulation pins, self stick/adhesive insulation pins, , lacing
hangers, and self locking washers/speed clips , dome cap washers.
