22 MM Stainless Steel Lacing Hook Washers With Single Hole Used In
Lacing Blankets
Quock details of the Lacing Hook Washers
Single-Hole Lacing Hook washers, It is widely used for fixing
Insulation Blankets or removable covers. Usually made in Stainless
Steel, these parts are used with lacing wire to assist in the
fabrication and application design of many removable covers in
various Insulation applications
- name:Lacing hook washers, lacing hooks, connecting metal hook
- Material: stainless steel 304,316
- standard size: 22mm
- material: 1mm thickness hardnessn stainless steel material
- hook size: 5mm x11mm
- one side is stamped " A " " B "
- Hole no.: single
- Hole diameter:5mm

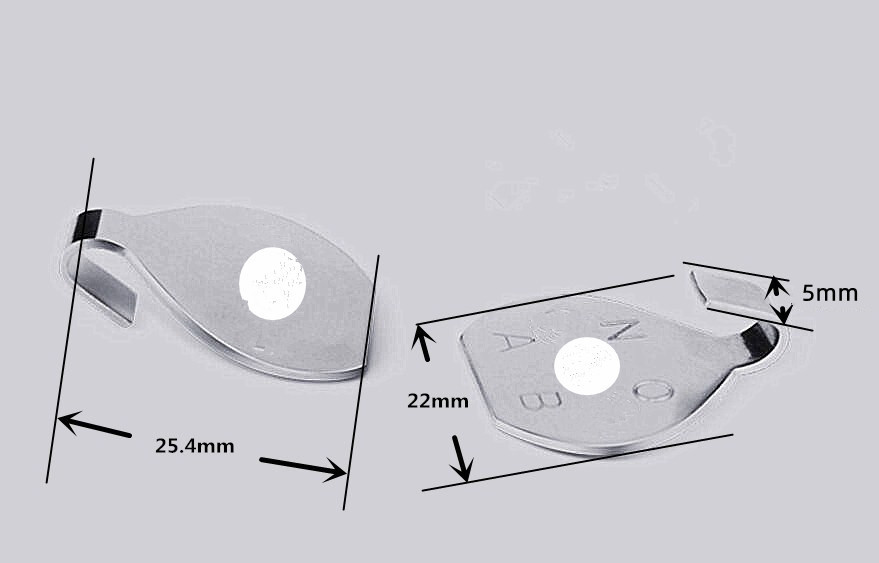

Drawing of the 22mm lacing hook washers |  |
material | Sheet thickness | size | hole size |
| SS304,316 | 1mm or customized | 22mm | 5mm |
type of the hooks | hook length | hook width | custom |
| one hole type, | 11mm | 5mm | Cut edge | 10mm or customized |
| Application area |
- ctuators
- Controls
- Insulation Blankets
- Lacing blanket,
- removable cover,
- Pipe Components
- unnel Dumper Actuator
- wrap insulation around irregular shape.
|
| Related type (similar products) | Lacing hooks, Double-hole lacing hook washers, Sindge-hole lacing
washers Double-holes lacing washers |
*****************************************************************************************************************************

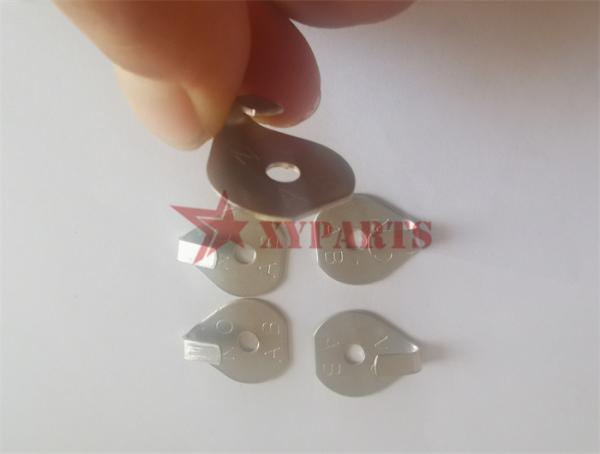

Photos of the Lacing Hook Washers
****************************************************************************************************************************************************************
Applications and Features of the Lacing Hook Washers
The lacing hook washer Provide by XIANGYI , It is widely used in
conjunction with lacing anchors for lacing blanket, or removable
cover, insulating applications. speed clip, or insulation washer,
holds insulation and fabrics together in blanket fabrications for
various applications where removable covers are desired.
- Removable and Reusable
- Simple and Quick Installation
- Long Lasting and Durable
- No Tools Required
- Weatherproof, Chemical Resistant, UV Resistant
- No Equipment Downtime
- Blocks the Flame Path and Retards Heat Flow
**********************************************************************************************************************************************************************
Parts of the Lacing Hook Washers
The Lacing hook washer is used together with lacing hanger, lacing
ring /tie wire , etc
*********************************************************************************************************************************************
Packing methods of the Lacing Hook Washers
Packed with plastic bags +cartons,+Cases/Pallets
200pcs/500pcs/1000pcs per bag, also could be packed according to
the customer' requirements.
