Quilting Pin 1" Long Pin X 12 Gauge Stainless Steel For Insulation
Duct Work
Quick details of Insulation Quilting Pins
Insulation quilting pins are stainless steel pins that help
simplify the installation of insulation materials by
securing the insulation to duct work and other HVAC metals and
housings. Quilting pins are made up of
a weld pin and a retaining head. They can also be used as a
hookless lacing anchor to secure insulation
inside fabricated blankets. Insulation quilting pins come in
standard sizes of 2-1/2” and 4-1/2”, but other
lengths are available upon request. They are typically made of mild
steel and stainless steel in 12 and
14 gauge. View our selection of quilting pins below!
Specification of Insulation Quilting Pins
| base size | base material | pin diameter | pin length | pin material | finished |
| 20MM | mild steel, stainless steel, copper | 2.7MM,3MM, 3.4MM | 10MM, 25MM, 38MM | mild steel, stainless steel, copper | zinc/ copper plating |
| 25mm | mild steel, stainless steel, copper | 3mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| 30mm | mild steel, stainless steel, copper | 3.4mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| custom | custom | support custom | support custom | | |

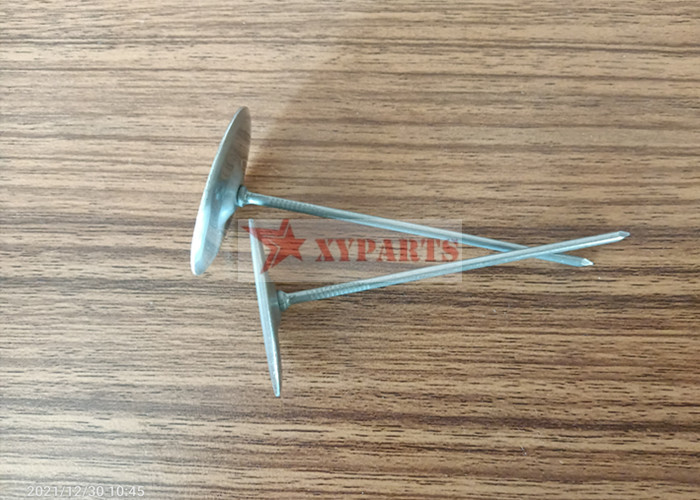

Pic of Insulation Quilting Pins
Feature of Insulation Quilting Pins
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards
and providing a professional appearance.Quilting Cup Head
Insulation Pins are copper plated. |
| REDUCED DOWN TIME | REDUCED DOWN TIME |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for
complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| CORROSION RESISTANCE | Quilting Cup Head Insulation Pins function properly over normally
accepted operating range of temperatures of 0 degrees C to
121degrees C and are not adversely affected at temperatures of 0
degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically
affected by vibrations normally found in high velocity air handling
systems. |
Install of Insulation Quilting Pins
Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil
and any other loose matter.
2.Remove the protective release paper taking care not to touch the
adhesive.
3.Place the hanger in the required position and press the base
against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with
fastening clips but maximum strength of
adherence is achieved after 24 hours
Packing of Insulation Quilting Pins
| Product | Quantity | Box size | Weight |
| 12Gauge 3/8” cup head weld pins | 1000Pcs | 26×26×8CM | 2.85KG |
| 12Gauge 7/8” cup head weld pins | 1000Pcs | 26×26×11CM | 3.5KG |
| 12Gauge 1” cup head weld pins | 1000Pcs | 26×26×11CM | 3.7KG |
| 12Gauge 1-1/8” cup head weld pins | 1000Pcs | 26×26×13CM | 4.2KG |
| 12Gauge 1-7/8” cup head weld pins | 1000Pcs | 26×26×18CM | 4.85KG |
| 12Gauge 2” cup head weld pins | 1000Pcs | 26×26×18CM | 4.95KG |
| 12Gauge 3” cup head weld pins | 1000Pcs | 26×26×18CM | 7.05KG |
| 12Gauge 4” cup head weld pins | 1000Pcs | 26×26×32CM | 7.6KG |
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation
fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold
according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
Special design can contact us make new mold as your pic or drawing
pic !
