Carbon Steel Di-Electric Cup Head Pins For Fixing Fiberglass
Insulation On Metal Ductwork

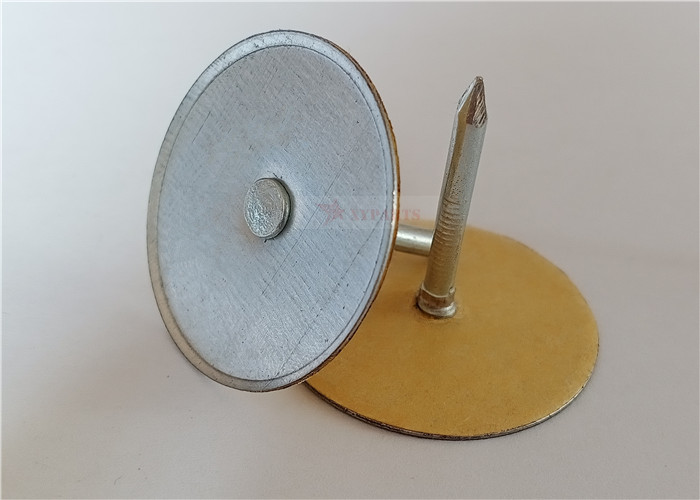

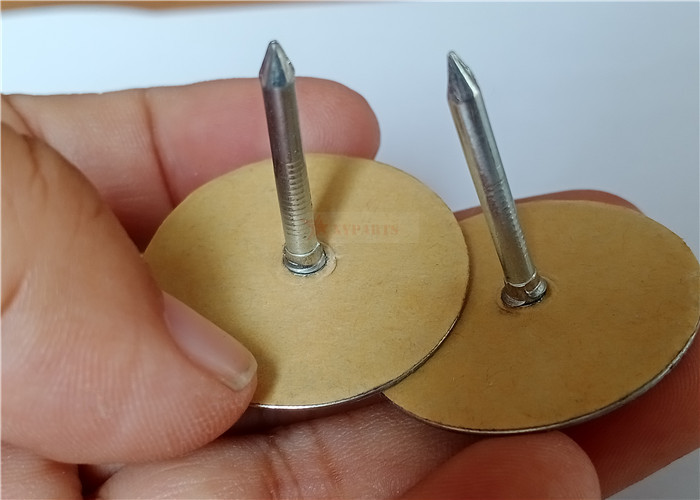

Quick Details Of The Di-Electric Cup Head Pins
Di-electric Cup Head Pins is a fabricated part made up of a weld
pin and a staked on
retaining washer.
Di-electric Cup Head Pins are usually applied with a capacitor
discharge stud welder.
Di-electric Cup Head Pins is a kind of fasteners which could be
directly welded through
the insulation to the sheet metals, allowing the fabrication to be done in one easy step.
So the Di-electric cup head pins are widely accepted as
labor-saving fasteners in the
thermal and acoustic insulation market for use in industrial and
commercial applications.
Item: 1" Di-Electric Cup Head Pins Head Material: Galvanized steel
Head Edge: Beveled edge washer to prevent cutting of insulation material.
Head Diameter (B): 30mm
Type: Di-electric type (with paper washer)
Pin Material: Galvanized steel
Pin Diameter: 2.7mm
Pin Length: 1" / 25mm
|
 |  |
Item: 4" Di-Electric Cup Head Pins Head Material: Galvanized steel
Head Edge: Beveled edge washer to prevent cutting of insulation material.
Head Diameter (B): 30mm
Type: Di-electric type (with paper washer)
Pin Material: Copper coated steel
Pin Diameter: 2.7mm
Pin Length: 4" / 105mm
|
 |  |
Specifications Of The Cup Head Pins
| Material | Plating | Washer size | Nail dia | Pin length |
Mild steel | Galvanized or copper plated | 30mm,38mm or customized | 2mm, 2.7mm, 3.0mm,3.4mm | 19mm, 25mm, 38mm, 50mm, 63mm, 76mm, 90mm, 100mm, 114mm, |
Note | The washer and nail size could be customized . |
Beveled edge | Prevents tearing of duct liner |
Faster welds | Forged diamond point design creates more electrical resistance for
faster welds. |
Better plating | Zinc and copper plating exceeds SMACNA standards and gives a more
professional appearance. |
Reduced down time | Consistent point quality reduces frequency of machine adjustments. |
Stronger welds | Hardened steel point assures positive electrical contact for
complete sheet to pin fusion. |
Applied with standard equipment | Easily applied with automatic pin welder or most standard hand held
or hopper fed resistance welders. |
 |
Application Of The Di-Electric Cup Head Pins:
 |
Application: used for secure insulation materials onto steel surface. Step: 1. Hanging the insulation
2. Directly weld the cup head insulation pins through the
insulation materials |
Package Of The Di-Electric Cup Head Pins
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement. |
 |
FAQ Of Xiangyi Metal Product Co.,Ltd
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the
length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality
Management System" standard.
4) We will send you videos and pictures during the production and
shipment process.
6. Advantage Of Xiangyi Parts.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the
on-time delivery.
3) Excellent quality: we have rich experience, our products are in
line with international standard.
4) Good after-sale service: we offer good after-sale service for
each order.
