SS D Type Lacing Rings With Insulation Accessories For Removable Blankets

Ask Lasest Price
Brand Name :	XIANGYI
Model Number :	D-type Lacing rings
Certification :	ISO 9001
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300.000 pcs per week
Delivery Time :	15 days after confirm the order

Add to Cart

Product Details
Company Profile

SS D Type Lacing Rings With Insulation Accessories For Removable Blankets

SS D- Type Lacing Rings With Insulation Accessories For Removable Blankets

Quick Details Of SS D- Type Lacing Rings

Name: Lacing rings , ss D-type Lacing rings
Material: SS 304 or 316
Shape:D shape
Type: Welded or non welded
Wire Diameter: 3mm & 4mm in common
Ring Diameer: 30mm in common
D ring height: 25mm in common, or customized
Usage: Lacing rings are used with lacing wire in the fabrication of insulation blankets and removable covers/pads.

Note: the ring size also could made as your request via the wire dia, height , and ring diameer

Common size of the D-type SS lacing rings
material	wire diameter	inter width	inter height
stainless steel 304/316	4mm	30mm	25mm
stainless steel 304/316	3mm	24mm	19mm

SS D- Type Lacing Rings Specification:

other size of Inventory Welding Stainless Steel Pet Hand Pull Ring
wire diameter mm	inter diameter mm	Weight KG/100pcs
3	25	0.5
4	25	0.91
4	30	1.07
4	40	1.39
5	30	1.73
5	40	2.23
5	50	2.58
6	30	2.72
6	40	3.27
6	50	3.99
6	60	4.69
7	35	4.2
8	40	6.06
8	50	7.32
10	50	11.85
10	70	15.8

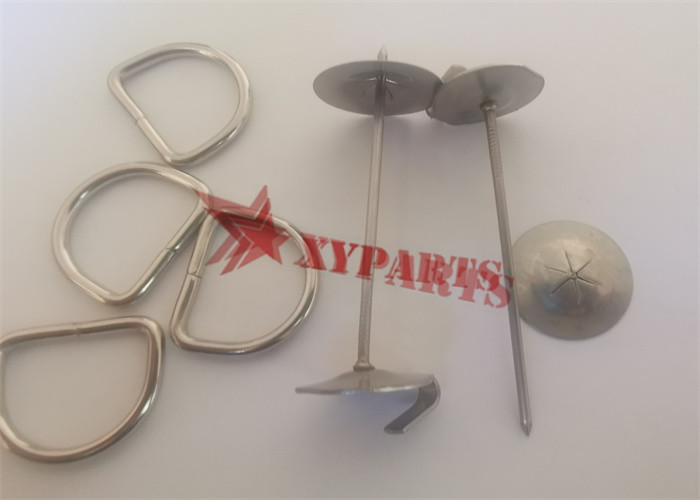

Photos of the SS D- Type Lacing Rings :

SS D Type Lacing Rings With Insulation Accessories For Removable Blankets

Application Of the SS D- Type Lacing Rings

These nickel plated steel welded rings can be used for a number of different applications including with leather goods, saddlery, chandlery, webbing and punch bag manufacture. They have a high quality weld to reduce wear and tear on fabrics. They are available in bulk packs in a variety of different sizes and thicknesses. Overall diameters are measured from the internal edges of ring (see diagram).

Related Products Of the SS D- Type Lacing Rings

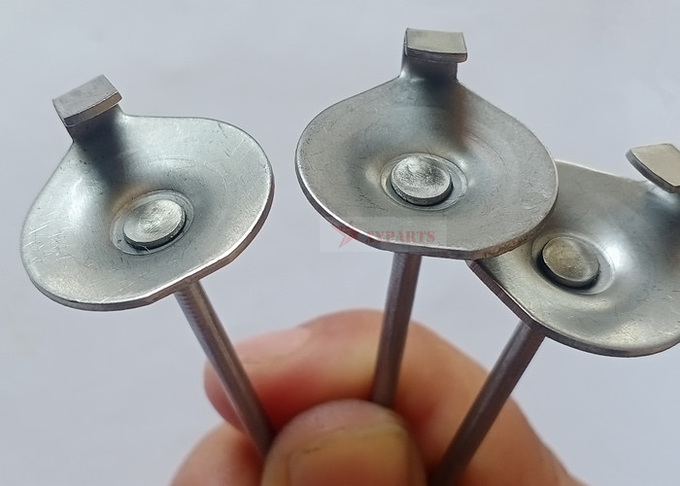

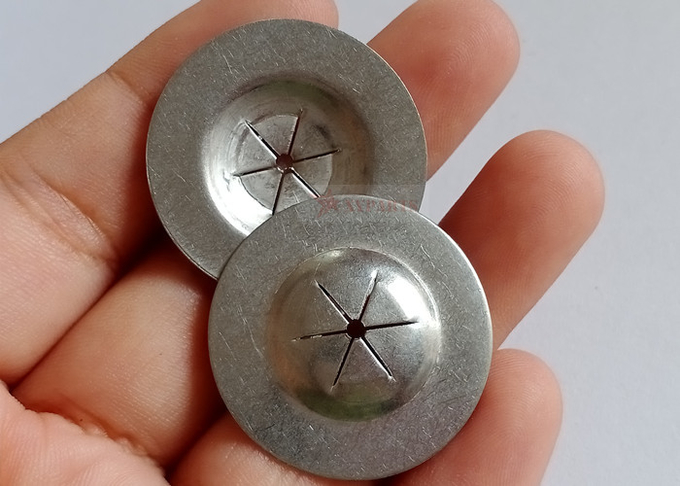

Parts	lacing anchor pins	lacing washers	lacing wires	lacing O rings	lacing D rings
Material	SS/MS	SS.MS	SS.MS	SS	SS
Size	63.5MM	25MM	2MM	30MM	20MMX30MM


Name: Lacing anchor pins Diameter: 2mm, 2.7mm Length: 63.5mm, 114mm	Name: Lacing washers Diameter: 25mm Thickness: 1mm

Name: Lacing washers Diameter: 25mm Thickness: 1mm	Name: Lacing O rings Material: stainless steel Technical: weld or not Size: 30mm

Package Of the SS D- Type Lacing Rings

Bulk packing, poly bags, Carbons, Pallet or accoding requirement

500pcs per pp bag,

4 bogs per carton

carton size:28x29x30cm

Sample:by DHL/EMS/UPS/TNT/EXPRESS ect

Delivery time :20 days after confirm the order

Large order :we recommand you by SEA .or by AIR if in an emergency
